1.1. 2D/3D Floor Plan: Intro

A brief introduction to the 2D/3D Floor Plan Viewer and a guide to its URL structure.

2D/3D Floor Plan Viewer

We’ll walk you through the 2D/3D Floor Plan Viewer in the following order:


  1. 2D/3D Floor Plan: Overview
  2. 2D/3D Floor Plan: URL Structure

👉 Use the 📋 Table of Contents on the right to quickly jump to the section you’re looking for!



2D/3D Floor Plan: Overview



📌 How to Create a 2D/3D Floor Plan

2D/3D Floor Plan Viewer becomes available once project content is created within the [My Projects > Projects section] of the Archisketch dashboard. Once your project is successfully created, simply click the generated project card to instantly access the 2D/3D Floor Plan Viewer.


👇 Check out the video below for “How to Create a Project”.


📌 How to View 2D/3D Floor Plans

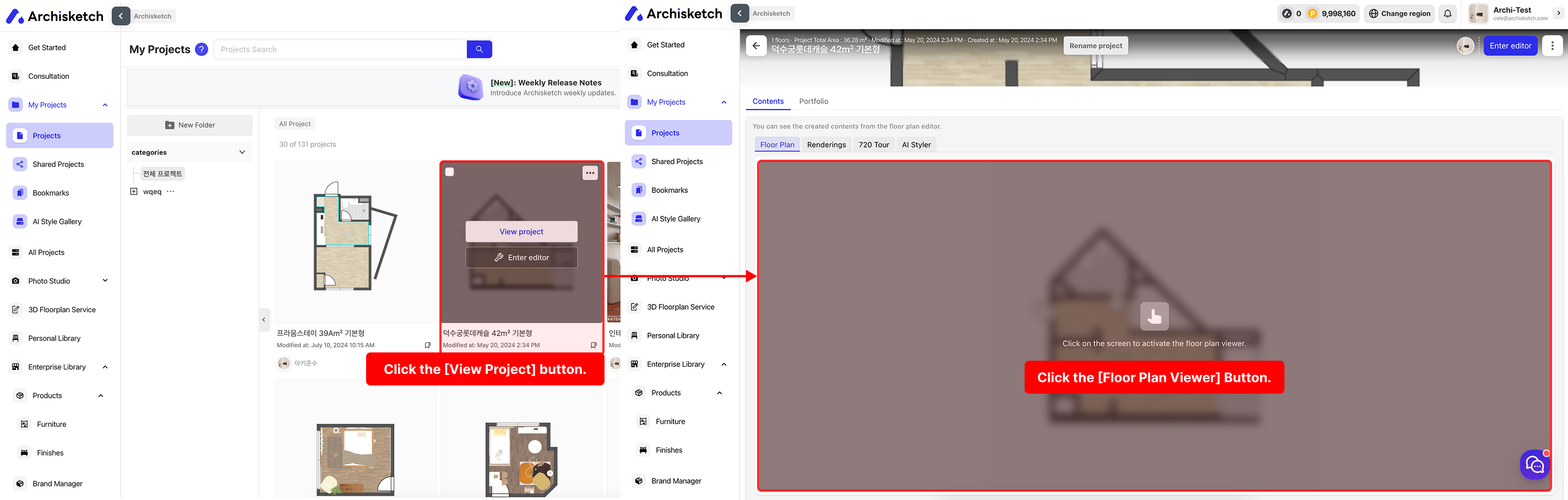

  1. From the Archisketch dashboard, go to [Projects > My Projects] or [All Projects] and click on a project card. (If you don’t have a project yet, click the [New Project] button to create one.)
  2. On the project detail page, navigate to the [Content > Floor Plans] tab, then click the Floor Plan Viewer button below.


2D/3D Floor Plan: URL Structure


Try it out using the demo page below.

The 2D/3D Floor Plan Viewer follows a common URL structure as shown below. You can also customize the model viewer by adding optional query parameters as needed.


📌 URL Structure

https://planner.archisketch.com/?projectId={'Content ID'}&mode={'Num'}

📌 Query Parameter

OptionsDescription
mode=2Set to 2D Floor Plan Viewer mode. (default: mode=2)
mode=3Set to 3D Floor Plan Viewer mode (default: mode=2)
