# CADアップロード

ArchisketchはCAD図面のアップロード機能に対応しています。ただし、アップロード前に、図面のLayerがArchisketchの要件に合わせて整理されている必要があります。Layerが整理されていないとエラーが

ArchisketchはCAD図面のアップロード機能に対応しています。\
ただし、アップロード前に、図面のレイヤーがArchisketchの要件に合わせて整理されている必要があります。\
レイヤーの整理がされていないとエラーが発生する可能性があるため、必ず以下の案内を参考に整理したうえでアップロードしてください。

{% hint style="warning" %}
この機能はArchisketchの有料顧客に提供されます。
{% endhint %}

## 例

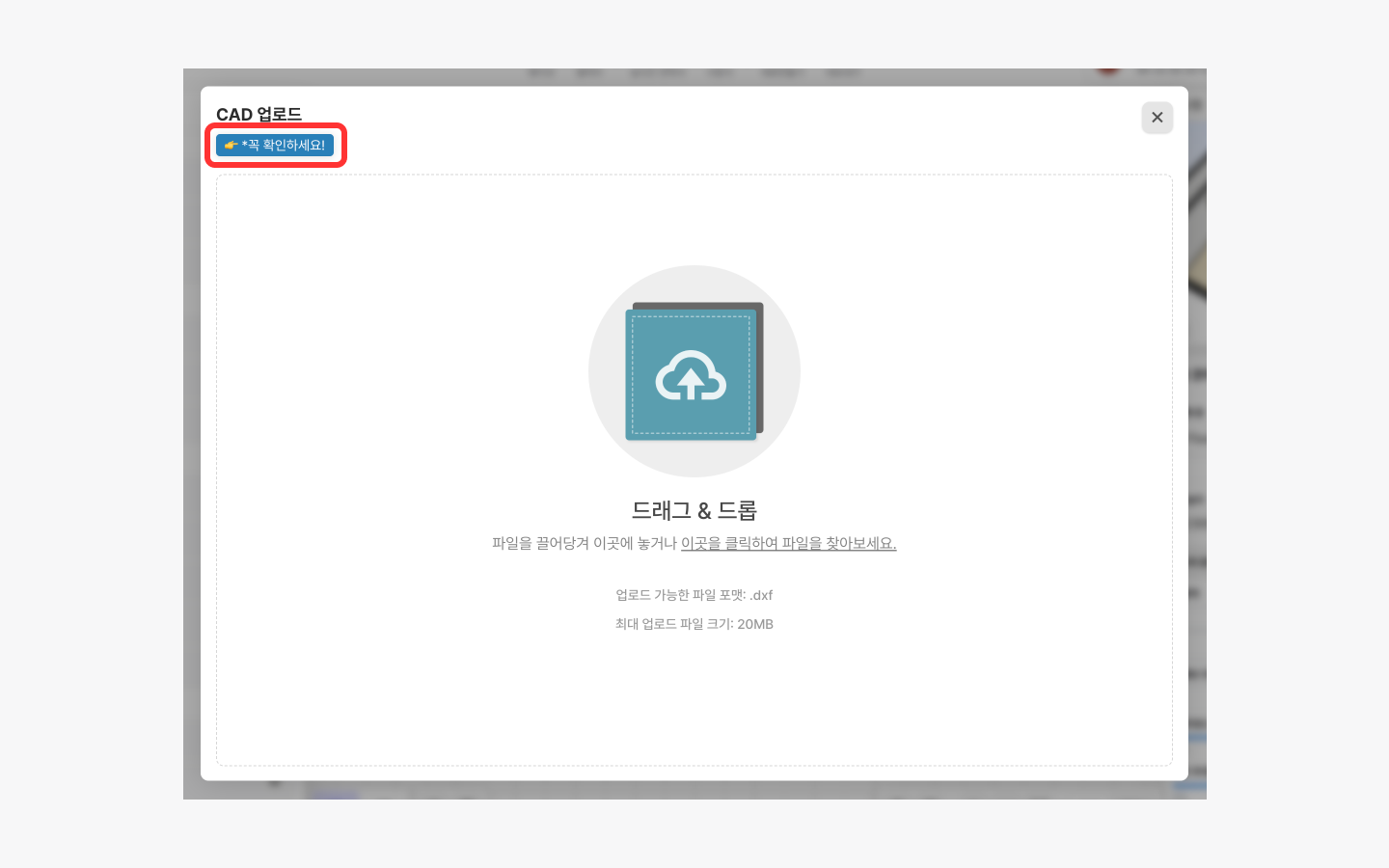

## アップロード可能なファイル形式（DXF）

* ファイル形式：DXF
* 最大ファイルサイズ: 10MB

<figure><img src="https://1692356280-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-f7fffa2fdb59ad2675cfa48e595c0956fa23b33a%2Fcad-upload-1.png?alt=media" alt=""><figcaption></figcaption></figure>

## CADでレイヤーを整理する

Archisketchでは合計4つのレイヤーのみ認識できます。\
図面をアップロードする前に、CADで以下のようにレイヤー名を設定してください。（大文字・小文字は区別せず設定可能）

| 種類 | レイヤー名                       |
| -- | --------------------------- |
| 壁  | **`wall`**                  |
| ドア | **`door`**                  |
| 窓  | **`window`**                |
| 柱  | **`line`** または **`column`** |

### 壁

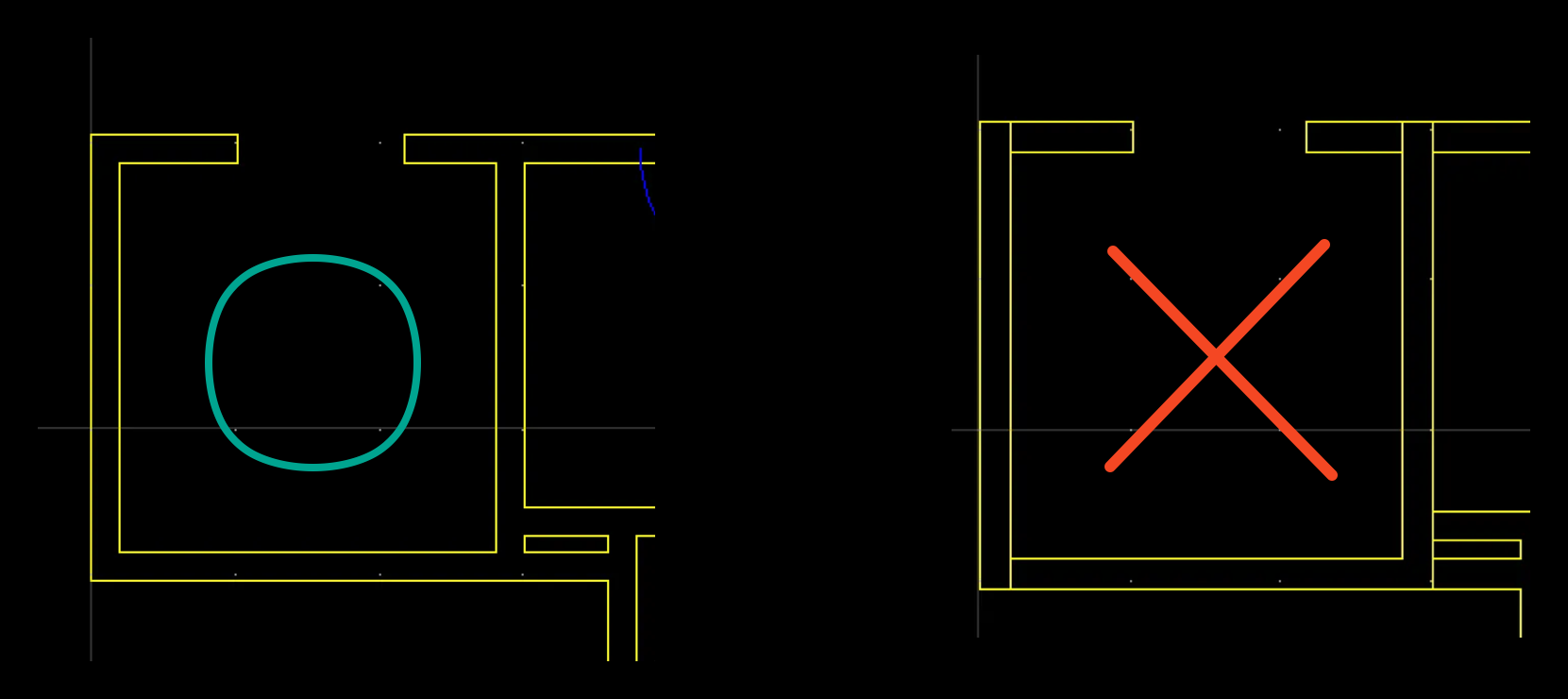

レイヤー名をwallに指定し、以下のように壁を描きます。

{% hint style="warning" %}
注意）壁の線と線は必ずぴったり接している必要があります。そうでないと、壁の検出が正しく行われません。

注意）壁と壁の間は閉じていない状態である必要があります。

注意）曲線の壁は対応していません。
{% endhint %}

<figure><img src="https://1692356280-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-c5117af6692ccd224d4c593afad18b9c945f15ee%2Fcad-upload-2.png?alt=media" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
壁が途切れているか確認しづらいときは、Hatchを適用してみてください！

1つのHatchがきれいに適用できれば、壁ラインの整理が完了したと考えられます！
{% endhint %}

**追加機能**

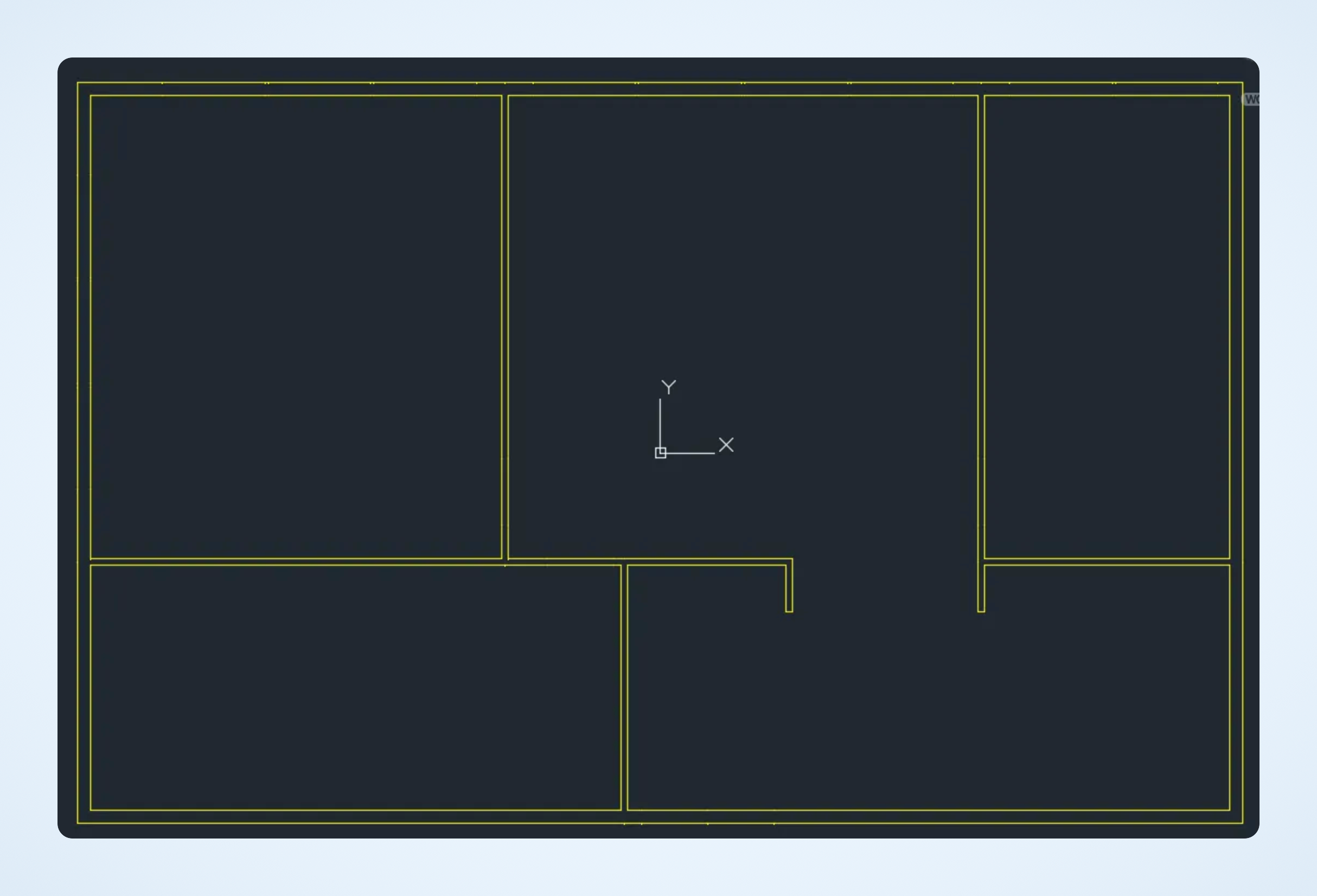

* CADであらかじめ壁の高さを指定できます！\
  レイヤー名をwall\_2800のように設定すると、Archisketchエディタで壁の高さが自動的に2800mmで適用されます。

<figure><img src="https://1692356280-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-7d26589b5f7a2e44baf1b60d6bc3e9018881531b%2Fcad-upload-3.png?alt=media" alt=""><figcaption></figcaption></figure>

### ドア

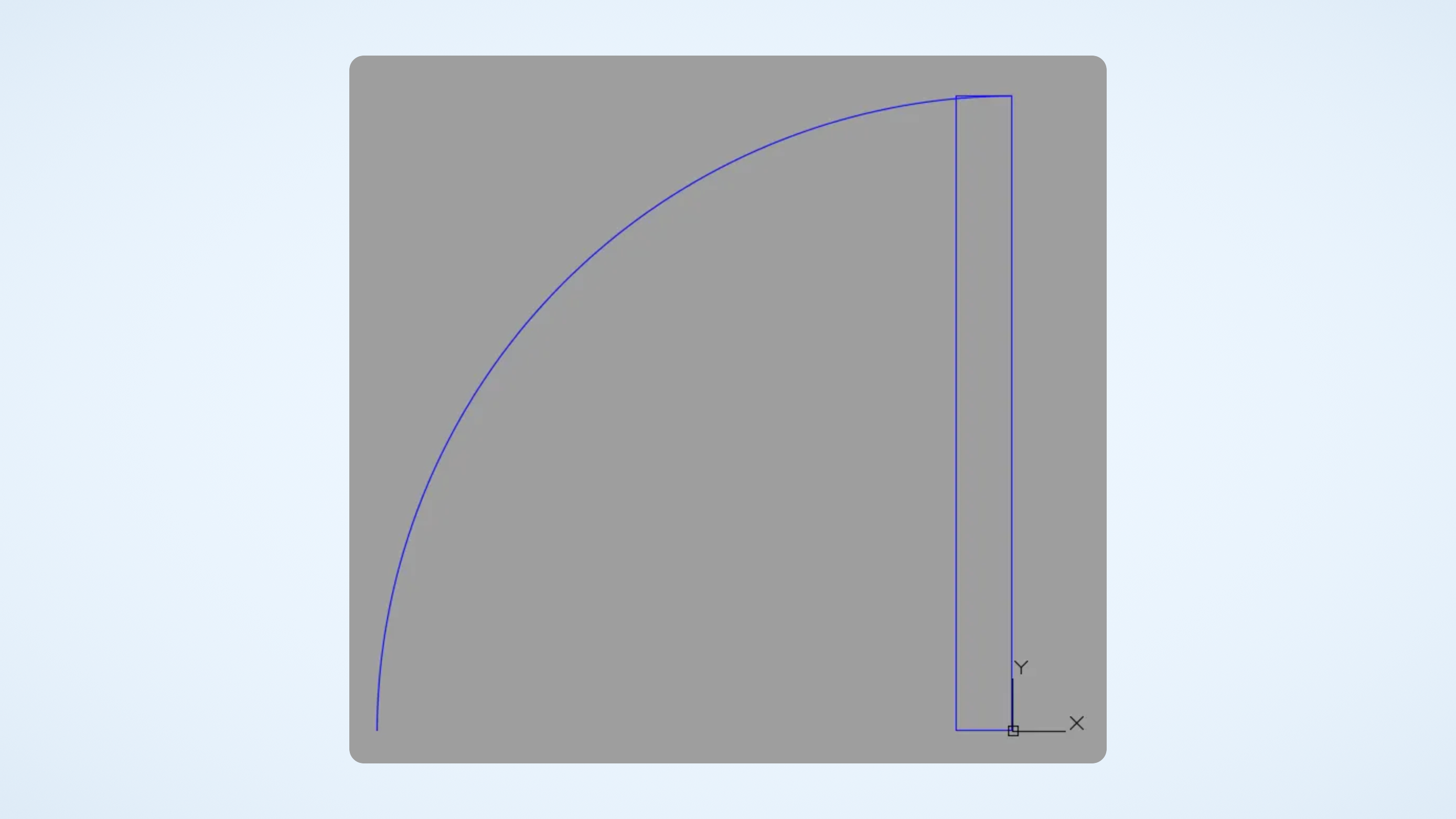

* ドアを以下のようにブロックで作成します。

<figure><img src="https://1692356280-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-a1b704bb77585fb7e945774b9ee1ae9824cd8876%2Fcad-upload-4.png?alt=media" alt=""><figcaption></figcaption></figure>

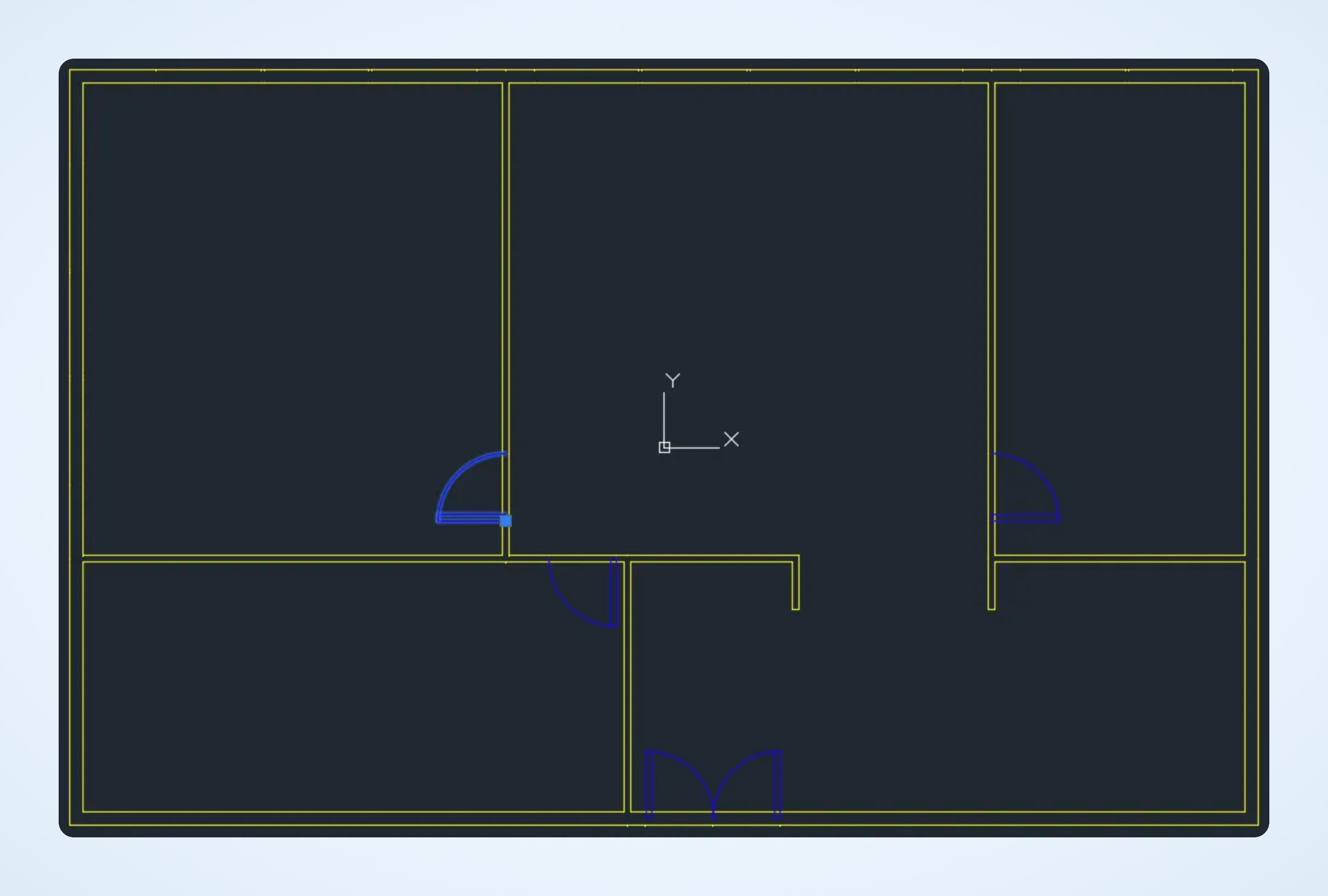

* レイヤー名をdoorに指定し、ブロックをドアの位置に配置します。

<figure><img src="https://1692356280-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-055714a4074514769fd43b7ad9f6eb25935d427d%2Fcad-upload-5.png?alt=media" alt=""><figcaption></figcaption></figure>

### 窓

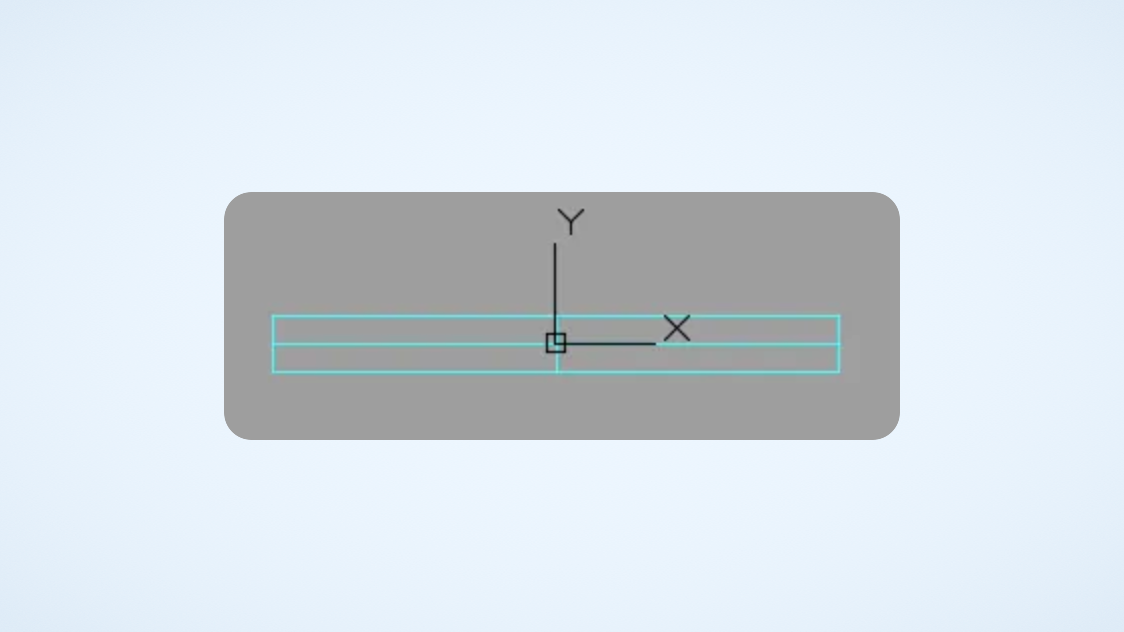

* 窓を以下のようにブロックで作成します。

<figure><img src="https://1692356280-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-2ef3a8dc9721b654be8ae392c04d91a9fb061b7d%2Fcad-upload-6.png?alt=media" alt=""><figcaption></figcaption></figure>

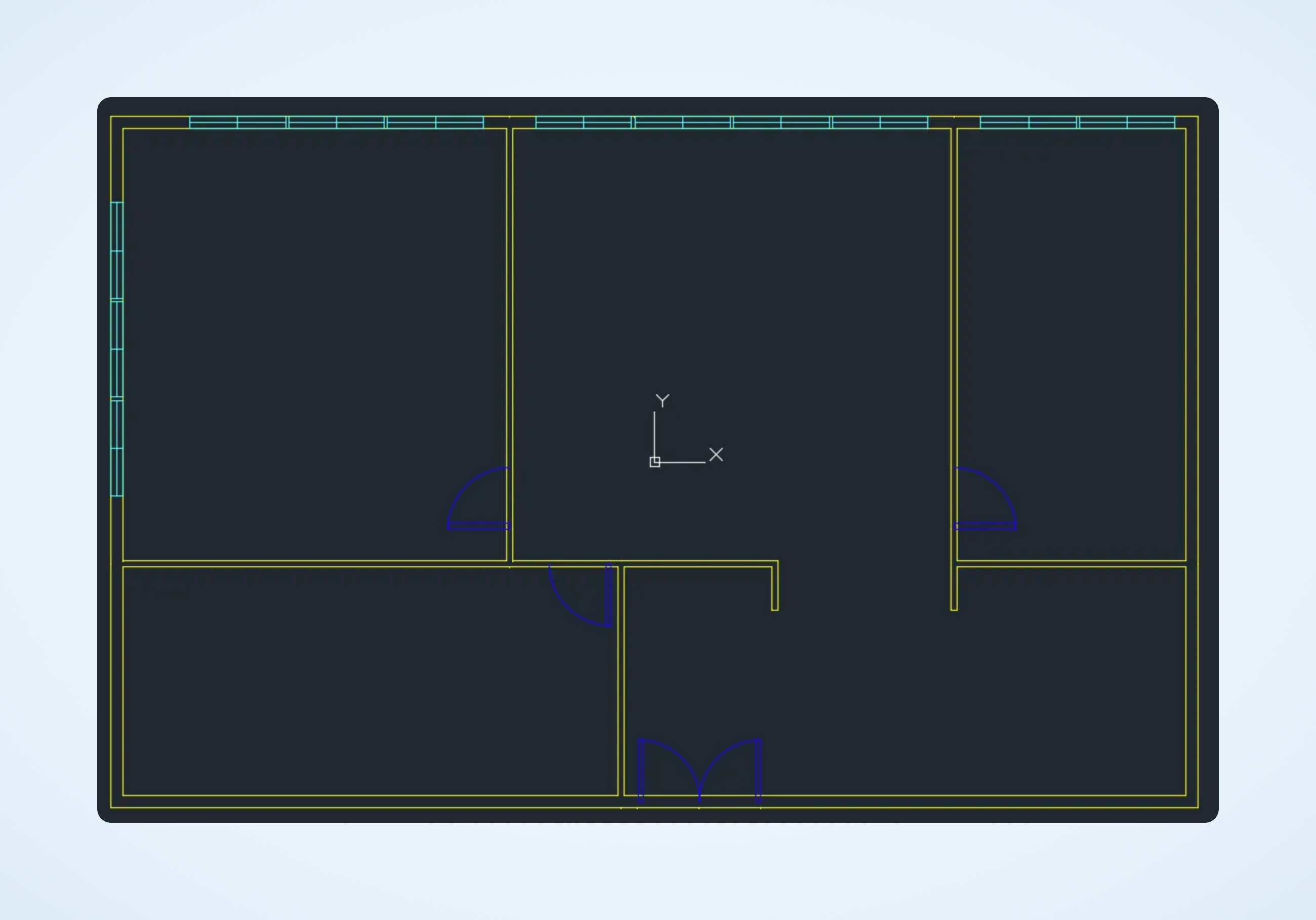

* レイヤー名をwindowに指定した後、以下のように希望の位置に挿入します。

<figure><img src="https://1692356280-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-fc7cd69995bd17d18b3e7f1d26856f5c4f3dcb79%2Fcad-upload-7.png?alt=media" alt=""><figcaption></figcaption></figure>

{% hint style="warning" %}
注意）ブロック化されていない窓はArchisketchエディタで読み込めません。
{% endhint %}

### 柱

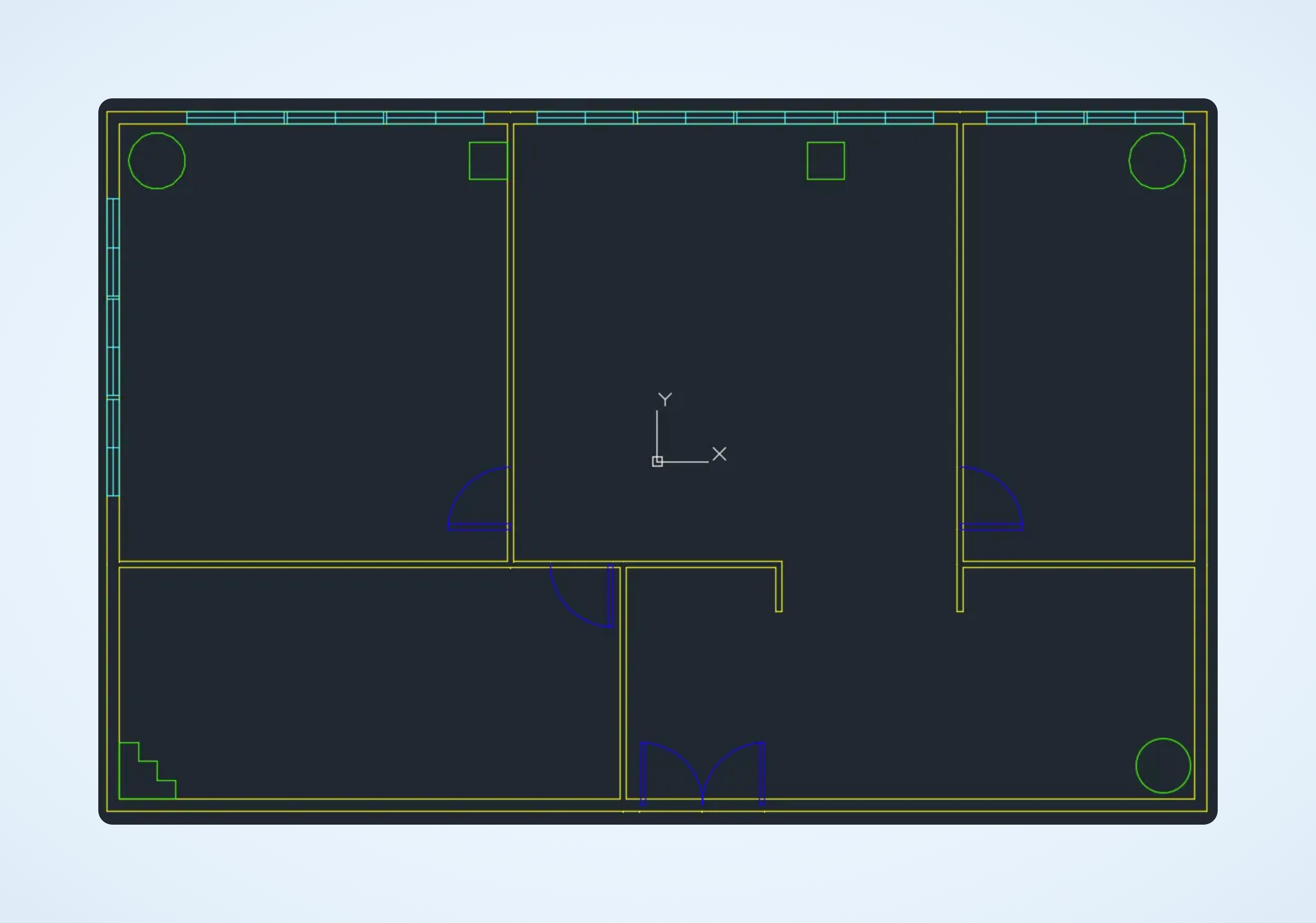

レイヤー名をlineまたはcolumnに指定し、多角形を描きます。

<figure><img src="https://1692356280-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-5fd4dcb477f207c328ed8d3f372d5540d15b0663%2Fcad-upload-8.png?alt=media" alt=""><figcaption></figcaption></figure>

{% hint style="warning" %}
注意）多角形は直線または円で構成されている必要があり、始点と終点がつながった図形である必要があります。
{% endhint %}

柱の作成条件

* 丸柱
  * 点の数が20個以上の多角形の場合
  * \[円形柱]に変換されます
* 角柱
  * 点の数が4個で、長方形の場合
  * \[角柱]に変換されます

![](https://1692356280-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-3340ab08c0c7f6994b9fdfd0ebb75ba342fbd5b8%2Fcad-upload-9.png?alt=media)

* その他の形状
  * 5〜19個の点を持つ多角形の場合
  * \[設計型ライブラリ > 建築/資材エディター] に変換されます

注意事項

レイヤー内に要件に合わない図形が含まれている場合、正常にアップロードされません。

![](https://1692356280-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-b91a8dc8d3ba4917eb79c8ab4ac2fe7630ed1bef%2Fcad-upload-10.png?alt=media)

### ファイルを保存する

* ファイル形式は必ずdxfで保存してください。その他の形式はアップロード機能に対応していません。

## Archisketchでアップロードする

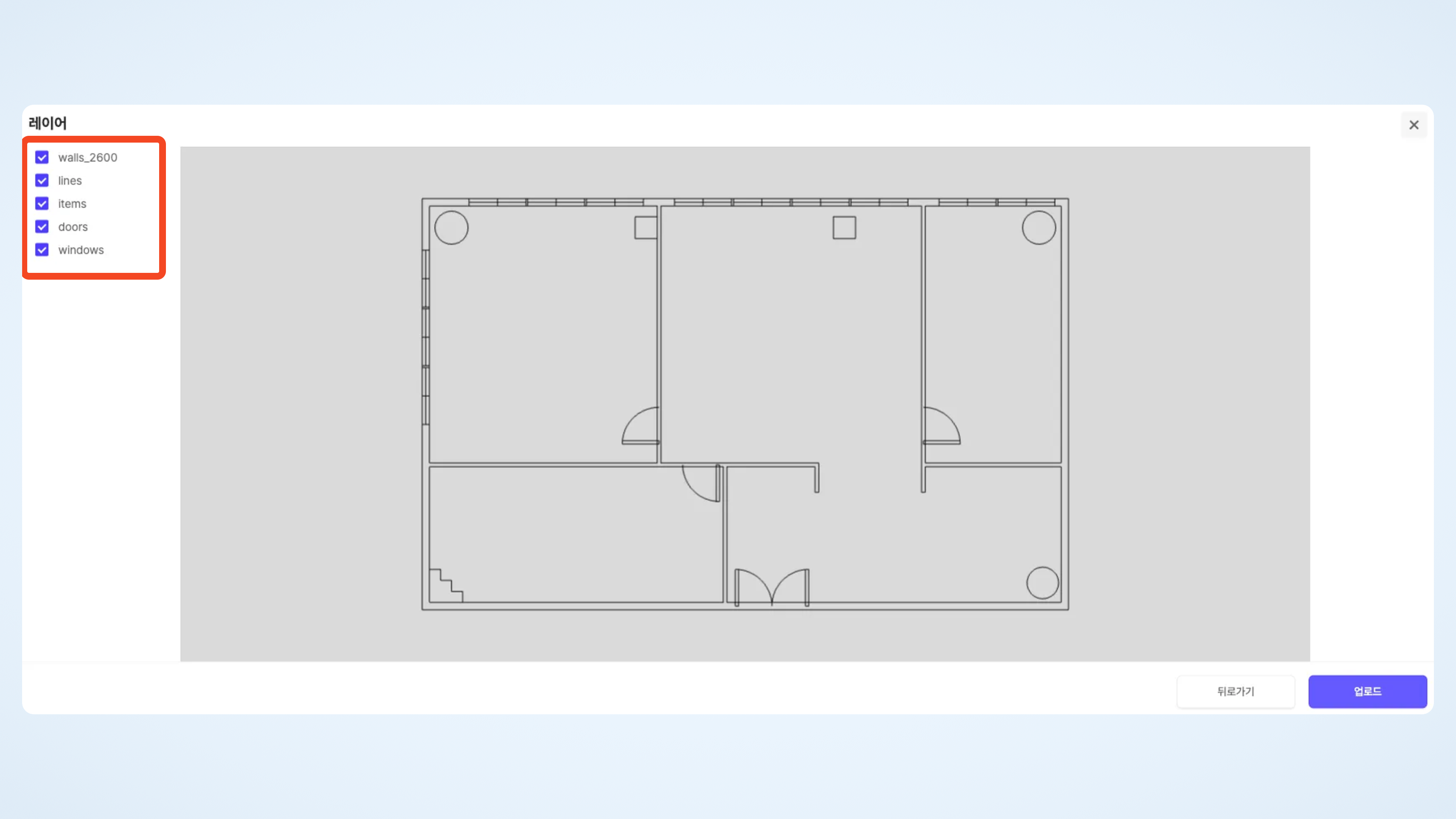

図面のアップロード方法

* \[図面アップロード] → \[CADアップロード] → \[ファイル選択] の順に進めます。
* その後、レイヤーを選択できるウィンドウが表示されます。
* 必要なレイヤーだけをオン・オフできます。
* 選択が完了したら、右下の\[アップロード]ボタンを押してください。

<figure><img src="https://1692356280-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-b137257b3fc220d971cdc3674995b392b241f572%2Fcad-upload-11.png?alt=media" alt=""><figcaption></figcaption></figure>

## エディタで編集する

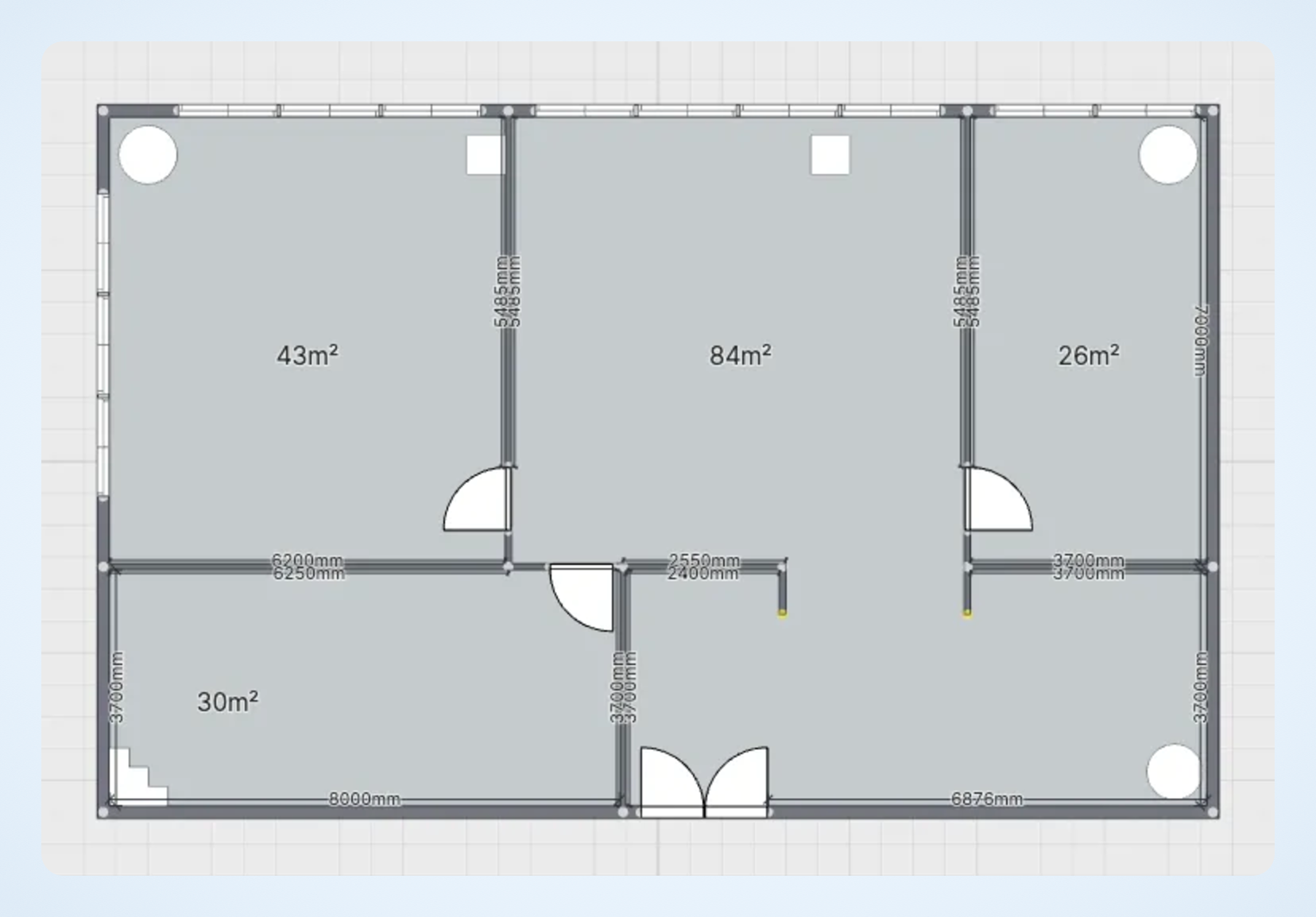

アップロードした図面はArchisketch形式に変換され、壁の編集、製品の配置、レンダリングなど、Archisketchのさまざまな機能を活用できます。

<figure><img src="https://1692356280-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-e357bd8e144756d9e0ed59dee7f018900ebc65e4%2Fcad-upload-12.png?alt=media" alt=""><figcaption></figcaption></figure>

## 柱を編集する

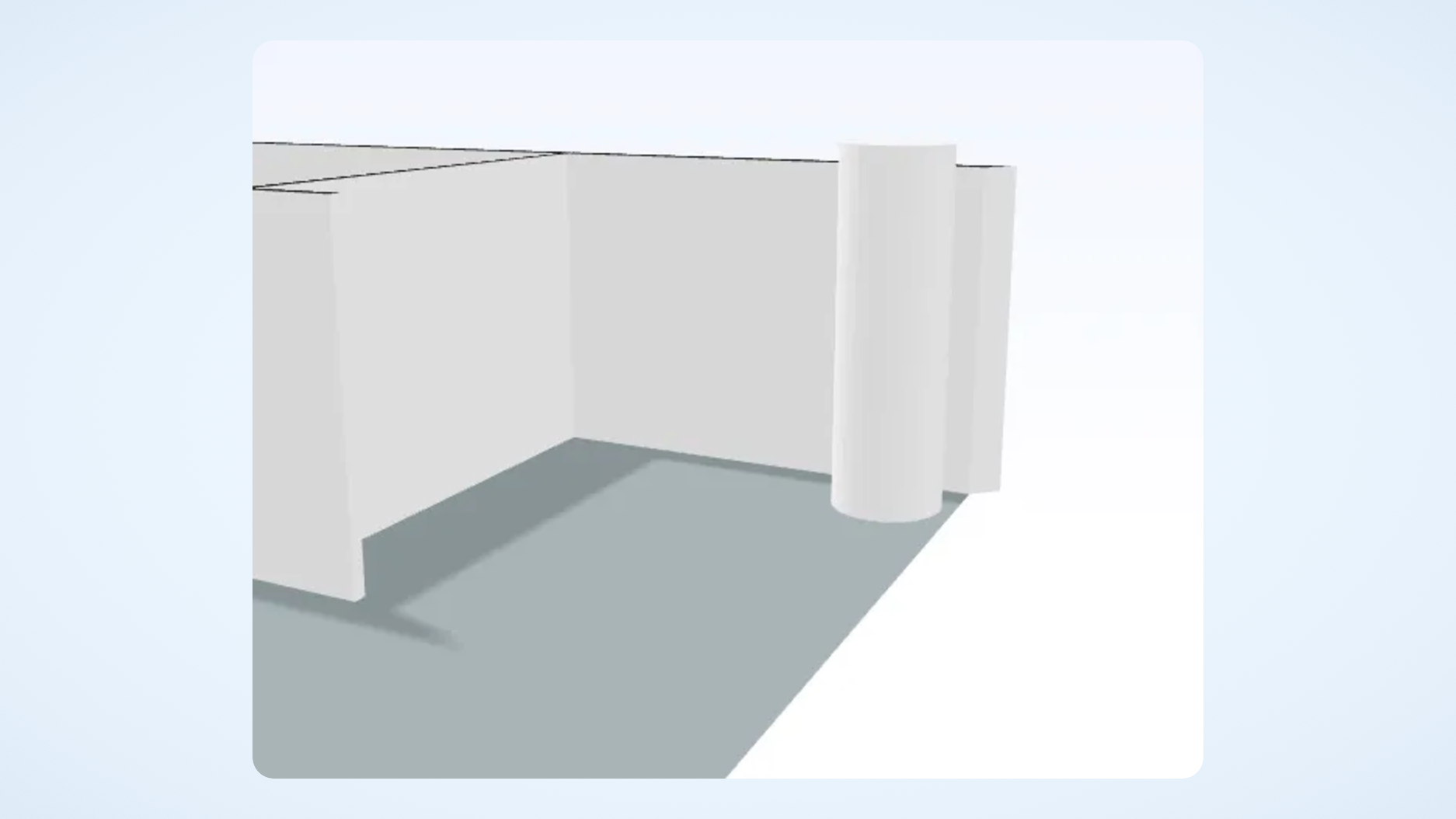

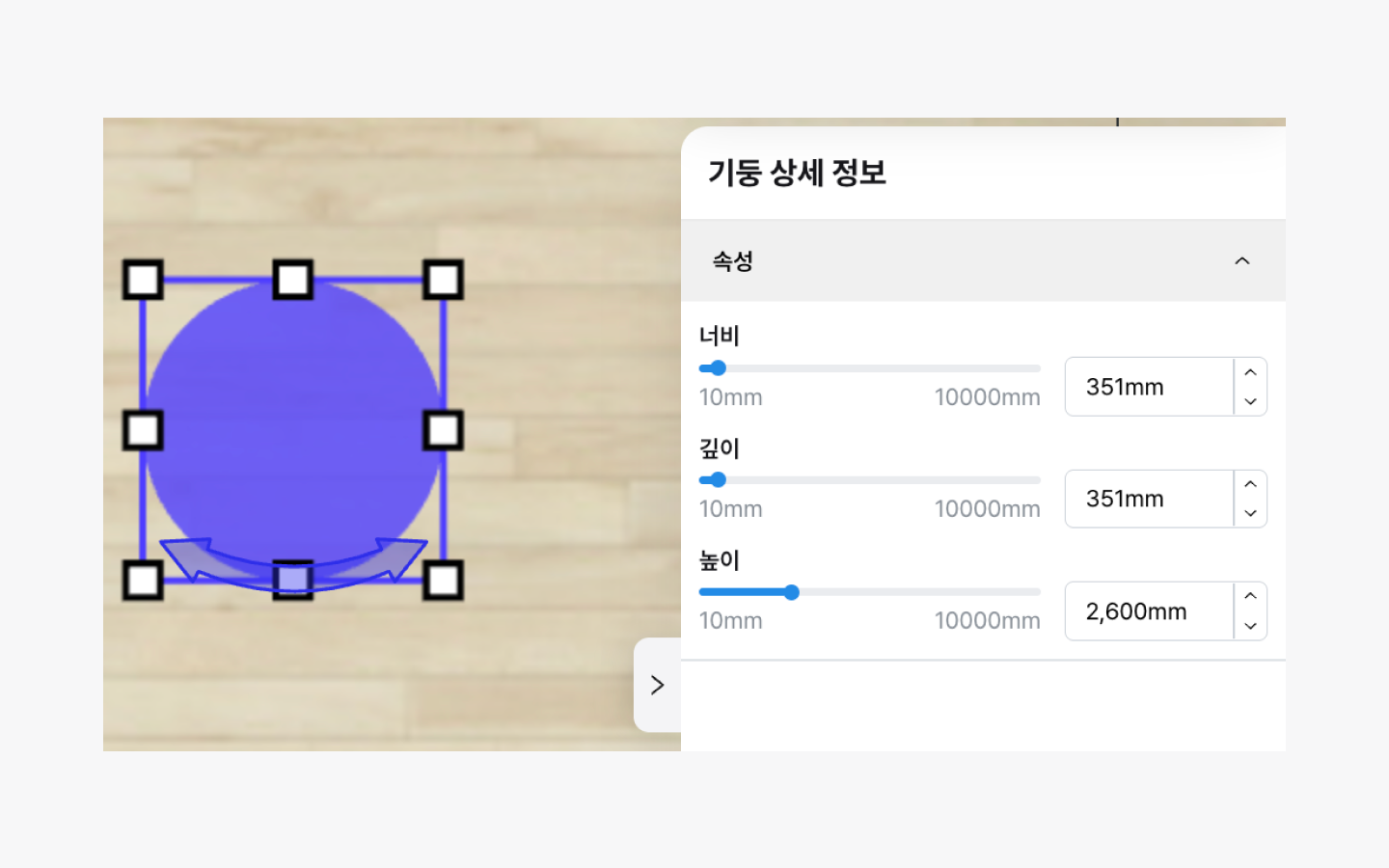

アップロードが完了したら柱を選択し、「属性 > 高さ」を変更して、柱を希望の高さに調整できます。

<figure><img src="https://1692356280-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-c5566710c106b2955eeee1cf19331562ac7d2ca7%2Fcad-upload-13.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1692356280-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-53db14524e0e2a05201d2d7e9bb92e034f65a64e%2Fcad-upload-14.png?alt=media" alt=""><figcaption></figcaption></figure>


---
