# Learn about Editor mode

Before placing furniture! We'll introduce the Editor mode information you should know first.

## Switch between 2D / 3D modes

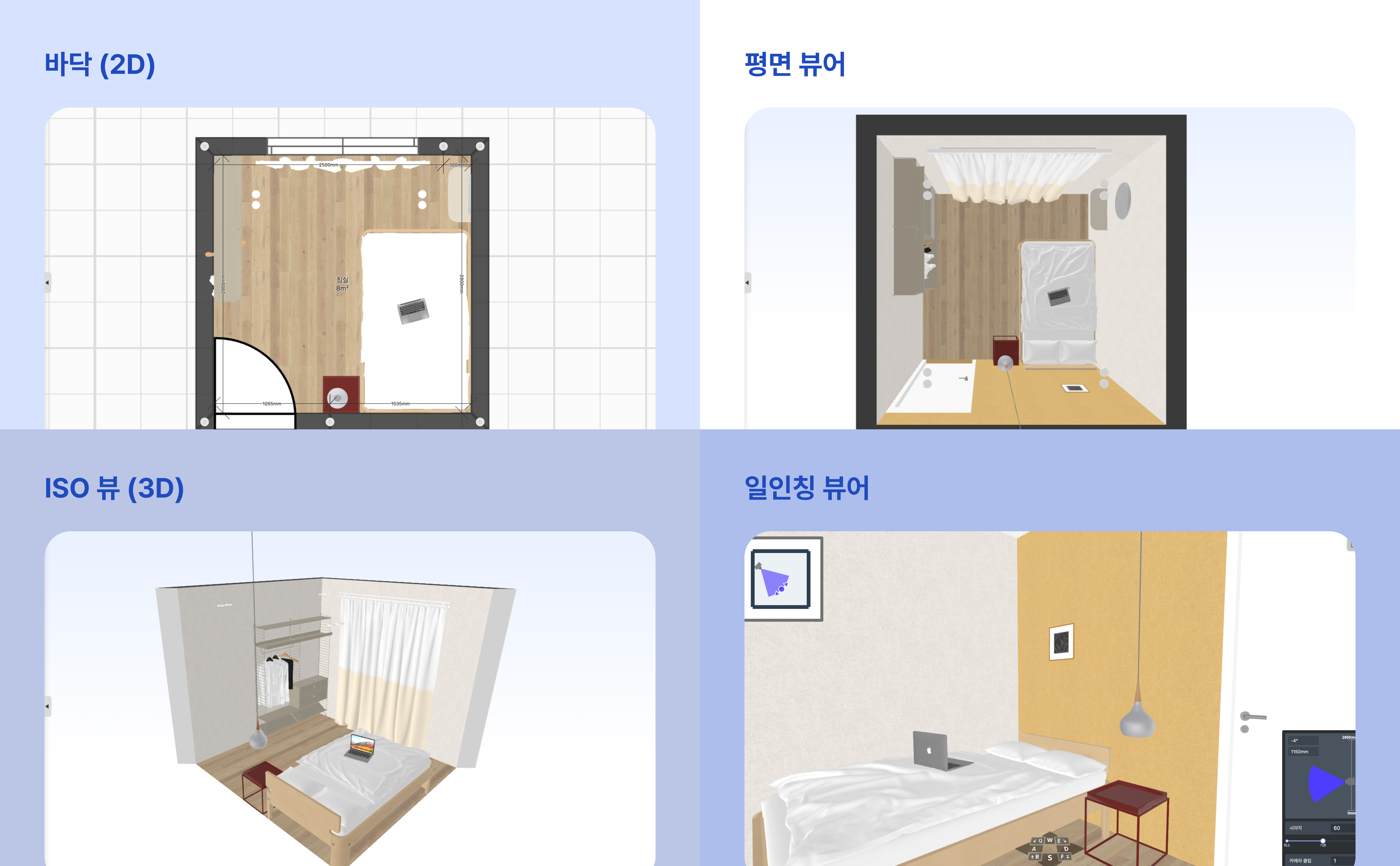

The editor offers four viewer modes.\
You’ll use the floor (2D) and ISO view (3D) most often, so be sure to remember the shortcuts!

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-8c7a6255b8798a13a52ce2b63f71fa61b5e9deff%2Feditor-modes-1.png?alt=media)

#### Floor (2D mode)

: This mode lets you view the drawing in a 2D plane.\
It’s useful for placing, copying, and moving furniture, or when setting up a layout.\
It also displays dimension information, so you can instantly check distances between pieces of furniture or between walls and furniture, which is a great help when arranging a layout.

#### Top-down view

: This mode lets you view the entire space from a top-down perspective.\
In this mode, you can see the space in three dimensions, making it easier to understand the placement and structure of furniture.

#### ISO View (3D mode)

: This mode lets you view products in 3D using an isometric view.\
You can fine-tune furniture placement and design while checking the front, side, and top at the same time.\
It’s especially useful when moving products up and down or placing finishes on wall surfaces.

#### First-person view

: This mode lets you explore the space from a first-person perspective.\
It feels as if you are actually inside the space, allowing you to experience the interior design and inspect details firsthand.\
However, in first-person viewer mode, you cannot place or edit products—only viewing is available.

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-d325e2fa96b6f3b97feb39d2e5850e4523e0b0d4%2Feditor-modes-2.png?alt=media" alt=""><figcaption></figcaption></figure>

Shortcut

| Name                   | Shortcut |
| ---------------------- | -------- |
| **Floor (2D mode)**    | 1        |
| **Top-down view**      | 2        |
| **ISO View (3D mode)** | 3        |
| **First-person view**  | 4        |

## 2D view mode settings

There are also various buttons in the view mode, shown by the eye icon at the bottom of the editor.\
You can turn features on and off, and using them appropriately can be a big help with your work. Shall we go through them one by one?

#### View mode

* Grid: You can turn the grid pattern displayed in the background on or off.
* Guidelines: You can show or hide the guidelines added while drawing the plan.
* Floor furniture: You can collectively turn on or off furniture whose position attribute is set on the floor.
* Wall furniture: You can collectively turn on or off furniture whose position attribute is set on the wall.
* Ceiling furniture: You can collectively turn on or off furniture whose position attribute is set on the ceiling.
* Architecture/Materials: You can easily turn on or off the structures created with the architecture/materials editor.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-a4c6d33a07455485bdfd64b6d475b62794676b74%2Feditor-modes-3.png?alt=media)

#### Room view

* Space name: The room type or a custom name you set is displayed.
* Space area: The area is automatically calculated and displayed on the 2D drawing.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-4888e47e5e8c463dde5211501e4464a765aa6628%2Feditor-modes-4.png?alt=media)

#### Dimension line view

* Interior wall dimension reference: By default, interior wall dimensions are displayed. You can check the exact dimensions between walls.
* Hide dimension lines: If you don’t need dimension lines, you can hide them by selecting Hide dimension lines. Useful when creating a clean drawing.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-829931d1995bdbf39421b791b65d423ff5af9262%2Feditor-modes-5.png?alt=media)

#### Measurement lines

* You can show or hide measurement lines added using the measurement feature from the tool-shaped icon at the top of the editor.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-44ff0240a2f7a44b9c5c709fd2882ca140e7b1e3%2Feditor-modes-6.png?alt=media)

## 3D mode settings

### Display mode

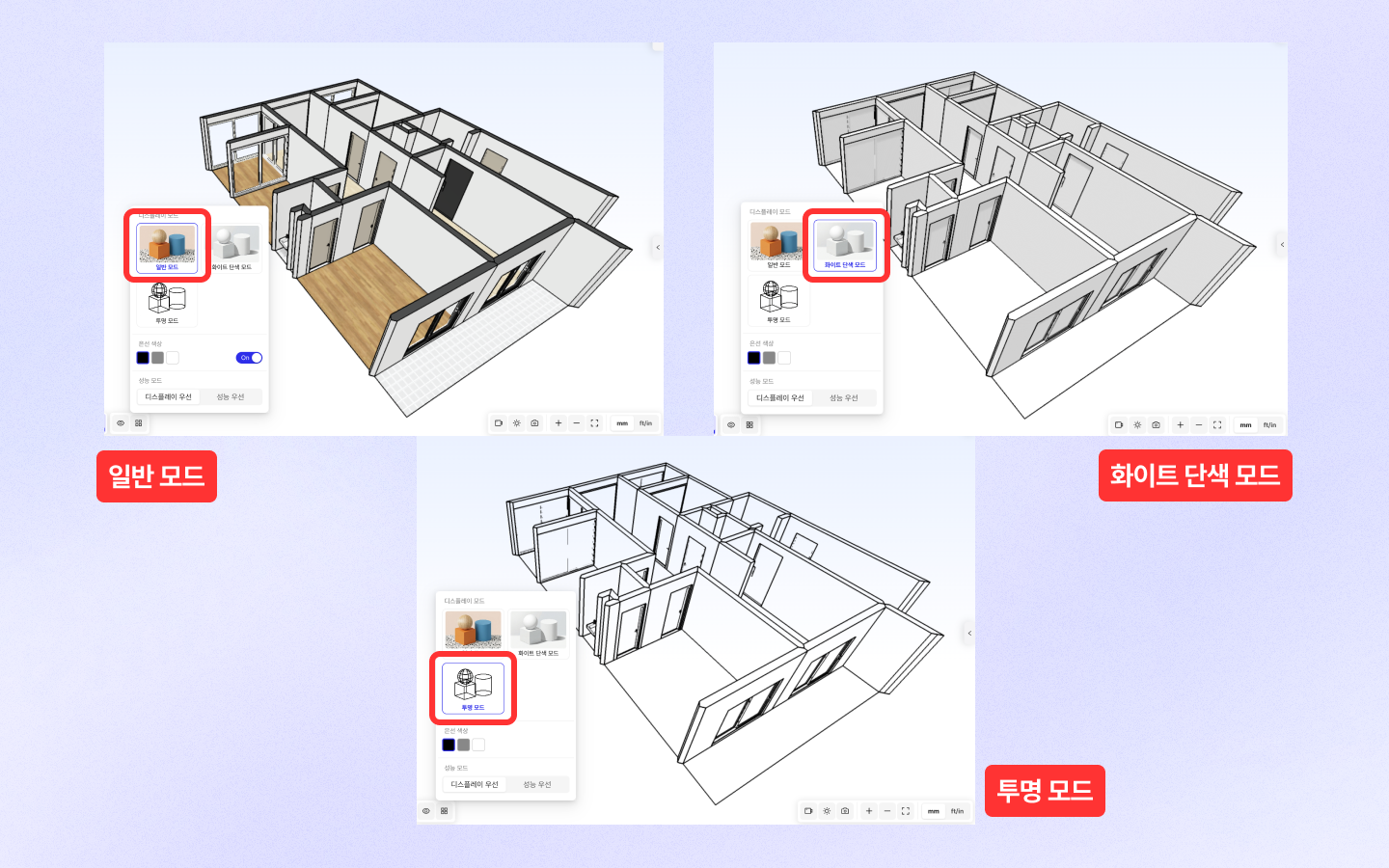

Archisketch provides four display modes.\
Using these modes makes it easy to check a product’s exact outline, which is useful for more detailed work.\
The modes are as follows.

* Normal mode: Products are displayed according to their color and texture by default. Use this in a general working environment.
* Wireframe mode: A mode that shows only the product’s outline, allowing you to accurately understand its shape. Useful for placement and alignment tasks.
* Material + wireframe mode: This mode emphasizes the product’s details.\
  Use it when looking at areas that require texture or detail.
* Transparent wireframe mode: Lets you better see the depth and dimensionality of products in 3D view.

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-0fcdf84df393ec8393327f3c86beb64f5177e77d%2Feditor-modes-7.png?alt=media" alt=""><figcaption></figcaption></figure>

### Performance mode

\[Display priority] and \[Performance priority] are two modes that optimize the screen in the Archisketch editor.\
Each mode configures the working environment differently, operating by prioritizing either display quality or performance.

* Display priority: Elements shown on the screen appear clear and detailed.\
  It is useful when visual quality matters, but it may be somewhat slow with complex models.
* Performance priority: Simplifies the screen display to provide fast response times.\
  Performance is smoother when working on complex tasks, but visual quality may be slightly reduced.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-91d49e5b647438eff2fab5e8bd11d908010be9c9%2Feditor-modes-8.png?alt=media)

### Camera settings

Click the camera-shaped icon at the bottom right of the editor to set the camera position, azimuth, and field of view in 3D mode.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-98ff0ac6d3576da38d085c279958e70c446dd297%2Feditor-modes-9.png?alt=media)

* Perspective: With camera altitude 35°, azimuth 47°, and field of view 60°, the space is naturally rendered with depth and perspective.\
  You can experience a realistic sense of space similar to what the human eye sees.
* Orthographic: Lets you accurately understand the structure and proportions of the space without perspective distortion.\
  A useful view when objectively reviewing furniture placement or space dimensions.

### Sunlight

Sunlight is applied by clicking the sunlight-shaped icon at the bottom right of the editor.\
Clicking this icon creates the effect of actual sunlight entering, allowing you to view the model more realistically.

* The sunlight settings are also linked with the render studio, so the applied settings are reflected during rendering as well.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-98ff0ac6d3576da38d085c279958e70c446dd297%2Feditor-modes-9.png?alt=media)

## Other features

### Lock plan (2D mode)

After completing the plan drawing, this is a feature that locks the walls of the plan so they won’t move while you decorate it by placing furniture or finishes.\
Using this feature lets you safely place other elements without accidentally changing the walls.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-c0d34b190b5d95c4215445db0ac2ab4753b301af%2Feditor-modes-11.png?alt=media)

{% hint style="info" %}
If you tried to modify a wall during work but it won’t move, check whether ‘Lock plan’ is enabled!
{% endhint %}

### Screen capture

A feature that lets you easily download the editor screen as an image file. Available in both 2D / 3D modes.

**In 2D mode**

* The entire drawing is automatically adjusted to fit.
* Dimensions and room names are excluded.
* The result is downloaded in PNG format.

**In 3D mode**

* It captures the view exactly as displayed on the current screen.
* Downloaded in PNG format.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-ca0d1dcc972416cc40fd7545aaf9a396fae04cba%2Feditor-modes-12.png?alt=media)

### Zoom in / out / fit to screen

If you want to zoom in or out without using the mouse wheel, please use this feature.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-79085e1aed699ffea3928ab555140400a3989a71%2Feditor-modes-13.png?alt=media)

❶ Zoom in: The editor screen zooms in.

❷ Zoom out: The editor screen zooms out.

❸ Fit to screen: The drawing is automatically adjusted to fit the screen.

### Dimension units

You can convert and view dimension units as \[mm] and \[ft/in].

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-01e8e41eb19c878312624834b621a7e23a347b89%2Feditor-modes-14.png?alt=media)

### Move the drawing with the mini map

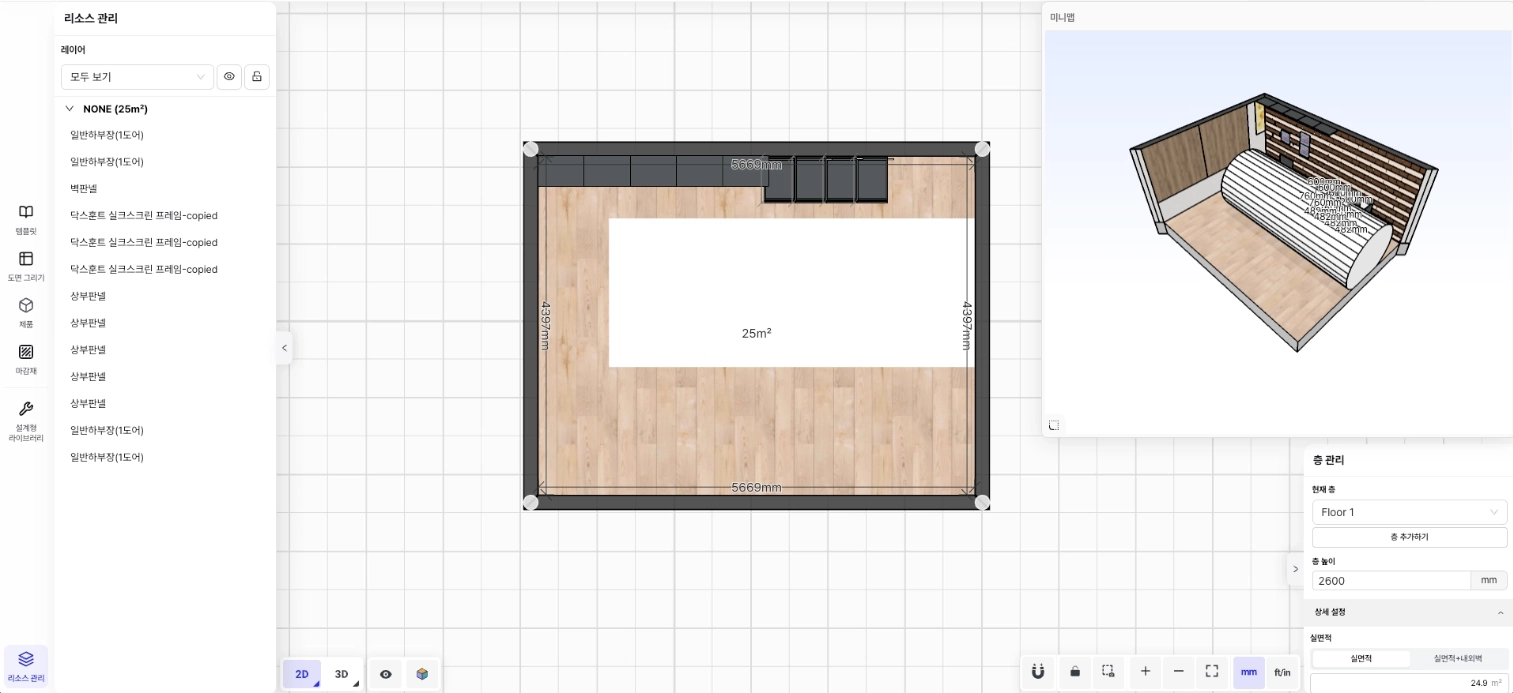

The entire drawing **mini map**at a glance. When working on a large drawing, you can quickly identify your current location and move to the desired area.

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-162c37108ebc5551f73634e863588514632ca8cf%2Feditor-modes-15.png?alt=media" alt=""><figcaption></figcaption></figure>

**Features**

* Drag the handle at the bottom left **to adjust the size of the mini map**.
* **It can be used the same way in the 2D/3D drawing editor, as well as the ceiling, finish, and parametric editors**.

{% hint style="info" %}
**Tip** — If you enlarge the mini map in a drawing with a large floor plan or multiple spaces, it greatly reduces the hassle of moving around the screen.
{% endhint %}


---
