# Draw floor plan

Draw a Floor Plan Yourself

## Draw a Floor Plan by Hand

In Archisketch, it's okay even if you don't have a floor plan of your home.\
You can easily draw your home in 3D using measurements you took yourself.\
When you enter a blank project, you'll see the Floor Plan tab on the left, where you can easily draw a floor plan.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-dbf577cf317dbd4c464777e6f53139121cddc1a4%2Fdraw-floor-plan-1.png?alt=media)

### Drawing Walls

When you start drawing walls (shortcut: L), you'll see the settings window at the top.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-23b0a934cbfd222c6b5f68aa0d1a5fffbeacf3f0%2Fdraw-floor-plan-2.png?alt=media)

❶ Select wall reference: When drawing a wall, you can choose based on the center, inner wall, or outer wall.

❷ Set wall thickness: You can set the wall thickness. The default value is 200.

❸ Snap mode: When Snap mode is turned on, yellow guide lines are activated to make wall drawing easier. You can also turn Snap mode off and draw freely.

❹ Orthogonal mode: When Orthogonal mode is turned on, you can only draw walls at 90-degree angles.

When drawing walls, the floor surface is automatically created only when the start and end points meet.\
If the wall ends are not connected, the unconnected points are shown in yellow.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-6faf249a40820b614e7aa4ff72d1367b046d8c96%2Fdraw-floor-plan-3.png?alt=media)

### Drawing Curved Walls

Not only straight walls, but also **curved walls**can be created. This is used to represent rounded spaces like stadiums or walls with rounded ends.

#### Three ways to create curved walls

1. **Direct drawing** — In the drawing tools **Drawing Curved Walls**Select it and draw it right away.
2. **Convert existing wall** — After clicking a wall, **convert it to a curved wall in \[Wall Details]**.
3. **Right-click menu** — Right-click an existing wall and **curved walls** select the item.

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-ae2b40b4ce6e0807b6d8ddec00afaca805149793%2Fdraw-floor-plan-4.png?alt=media" alt=""><figcaption></figcaption></figure>

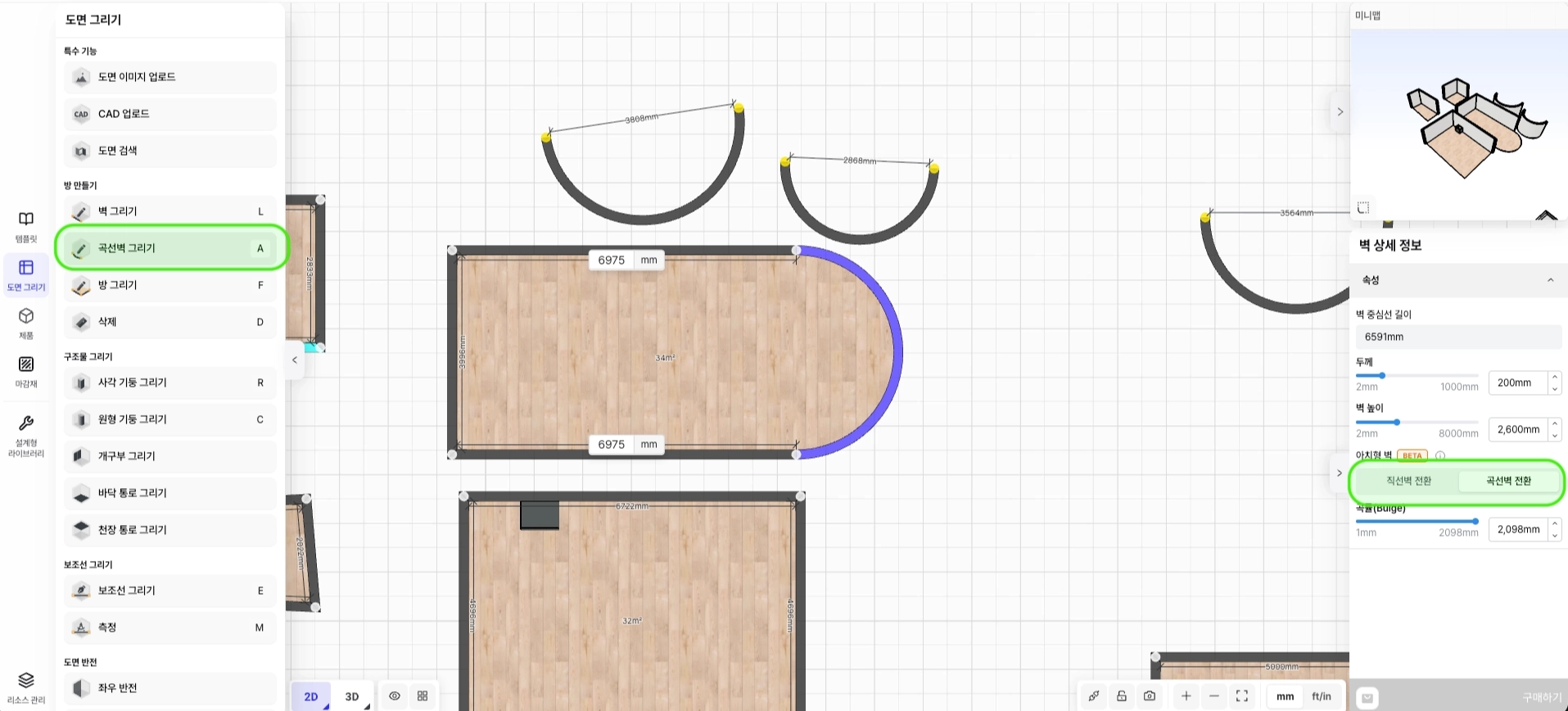

You can click Draw Floor Plan > Draw Curved Wall, or click the created wall and change it to a curved wall in \[Wall Details].

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-3b310e5537daad5b968ad975b58a14a6ab4fc572%2Fdraw-floor-plan-5.png?alt=media" alt=""><figcaption></figcaption></figure>

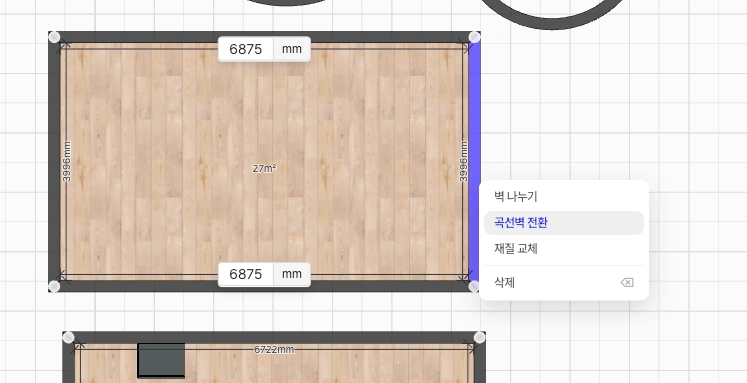

You can convert a straight wall to a curved wall from the right-click menu of the created wall.

#### Adjusting Curvature

After creating a curved wall, **adjust the degree of bending (curvature)**&#x74;o create various shapes such as stadium-like spaces or rounded ends.

{% hint style="warning" %}
**Please note** — Currently, curved walls **only support convex shapes that bulge outward**from the room. They cannot yet be applied to concave walls that bend inward or partition walls shared by two rooms. (This limitation is for stability and may be expanded later.)\</aside>
{% endhint %}

#### Frequently Asked Questions

* **Can a curved wall be changed back to a straight wall?** Yes, you can revert it to a straight wall in Wall Details or from the right-click menu.
* **I need a concave curve.** Currently, only convex shapes are supported. If needed, please express the space by dividing the layout.

### Drawing Rooms

Using Room Drawing lets you draw floor plans more easily and quickly.\
If you need to draw a floor plan from scratch, we strongly recommend using the Room Drawing feature.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-8b8d1821bcdc03ec9581ec2597b218cb7203e435%2Fdraw-floor-plan-6.png?alt=media)

* Select the Room Drawing tool (shortcut: F).
* Click the starting point with your mouse on the grid screen.
* Click the ending point to create a room of the desired size. At this point, the size is determined automatically based on the grid.
* To enter exact dimensions, before clicking the ending point, type the horizontal length on the keyboard while the dimension number is active, then press Enter or Tab to enter the vertical length, and press Enter again to complete the room.
* Press Esc to exit the mode.

### Adjusting Wall Length

You can easily resize a wall by grabbing it with the mouse cursor and dragging it.\
After clicking a wall, you can drag it with the mouse to expand or reduce it to the desired size.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-75b115dafae58c6eead2d496d9d7975598ee252a%2Fdraw-floor-plan-7.png?alt=media)

Not only walls, but you can also grab a corner and move it to create rooms in various shapes, not just rectangles.\
Click and drag the corner you want, and you can freely adjust the room's size and shape.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-9d3444fd5a0225423bcdc289222deec561267bfe%2Fdraw-floor-plan-8.png?alt=media)

You can adjust wall length by entering the desired number directly.\
Click the wall orthogonal to the wall whose length you want to change, and the number input field for that wall will be activated. Enter the value you want and press Enter to adjust the length.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-54ae734d3f81b93bb9e6bd9a209fd285ea696328%2Fdraw-floor-plan-9.png?alt=media)

### Splitting Walls

The wall splitting feature allows you to edit walls in more diverse ways and design creative spaces.\
Clicking a wall brings up the wall splitting tool.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-41c0707c51c74d53371a07cbafda4977cf00c547%2Fdraw-floor-plan-10.png?alt=media)

1. You can vertically separate finishes and manage them individually.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-98c4c4f403e071ea62b9ba412fd4d380699c4607%2Fdraw-floor-plan-11.png?alt=media)

2. You can break a wall to easily delete unwanted sections.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-d2564cda0bb699acf654a3985dc4d55969f95c8f%2Fdraw-floor-plan-12.png?alt=media)

**Shortcut**

| Function             | Shortcut 1       | Shortcut 2 |
| -------------------- | ---------------- | ---------- |
| Drawing Walls        | L                |            |
| Drawing Rooms        | F                |            |
| Delete Wall          | D                |            |
| Delete selected wall | Delete           | Backspace  |
| Delete selected room | Delete           | Backspace  |
| Undo                 | Ctrl + Z         |            |
| Redo                 | Ctrl + Shift + Z |            |

## Frequently Asked Questions

### Can curved walls be created?

It is difficult to set a wall surface in a curved shape, but you can use the \[Split Wall] feature to implement a wall as if it were curved.\
By splitting the wall multiple times, you can create a shape closer to a curved surface, and by adjusting and placing the width of fixed window products, you can also create effects like a panoramic window.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-4fbb7b6098935c2168a4a87ab3529fa415d59209%2Fdraw-floor-plan-13.png?alt=media)

### Can the floor plan direction be reversed?

You can find the floor plan reversal feature under Draw Floor Plan > Reverse Floor Plan.\
Both left-right and top-bottom reversal are supported.

![](https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-a55ae79bf3e540b307bb204097df178638a68e3d%2Fdraw-floor-plan-14.png?alt=media)

### Can the floor plan be printed?

The floor plan printing feature is not provided.\

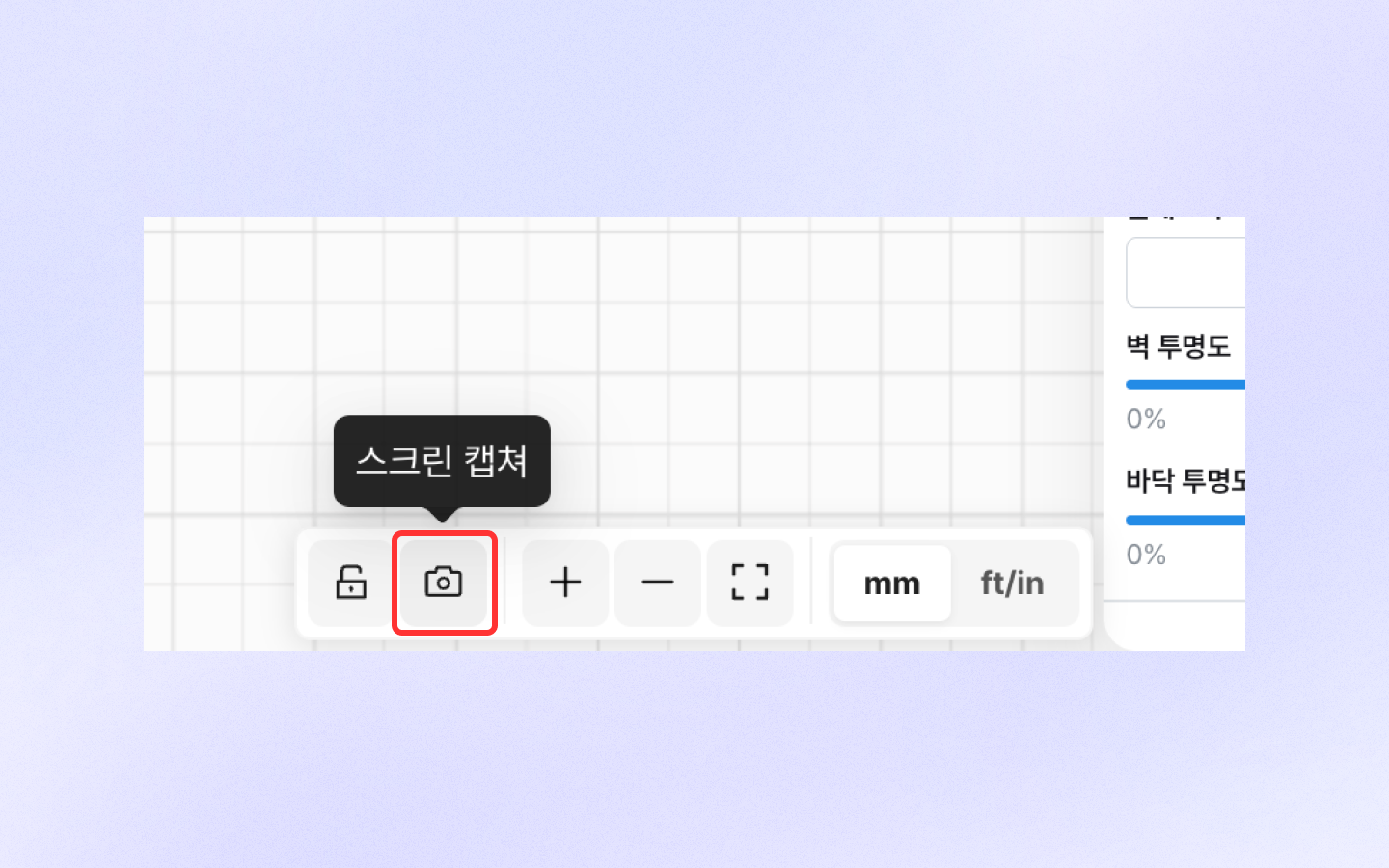

Instead, we recommend saving an image using the screenshot capture feature in 2D mode.

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-e62e4549ec3fcba2a967a59e68abaee61f6761b9%2Fdraw-floor-plan-15.png?alt=media" alt=""><figcaption></figcaption></figure>


---
