# Ceiling editor

What is the Ceiling Editor?

## What is the Ceiling Editor?

The Ceiling Editor is a feature that helps you create a variety of interior looks, such as tray ceilings, curtain boxes, indirect lighting installations, and ceiling moldings.\
If you want to make a space feel more lively and realistic, be sure to use the Ceiling Editor!\
When you take a rendering, you’ll be able to create a beautiful result. 🌟

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-494a1b52211b36ef0b8ca265067b06155cf60ed4%2Fceiling-editor-1.png?alt=media" alt=""><figcaption></figcaption></figure>

## Entering the Ceiling Editor

Here’s how to enter the Ceiling Editor.

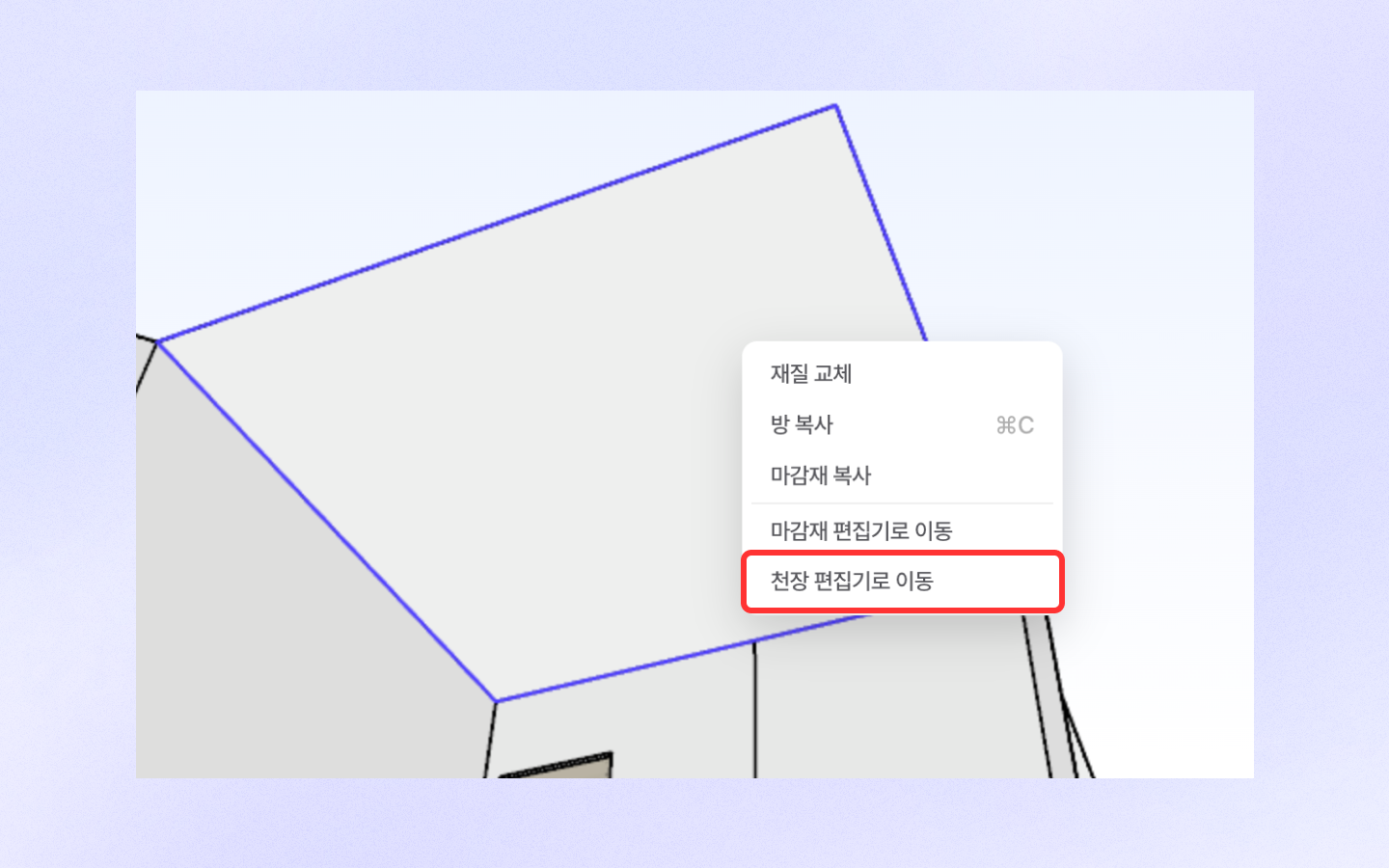

* In the 3D view, click the ceiling surface, then right-click and select Ceiling Editor

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-9ecfcd7887cd6b8baf72aea84cabba9896c1ea28%2Fceiling-editor-2.png?alt=media" alt=""><figcaption></figcaption></figure>

## Ceiling Editor Layout

When you open the Ceiling Editor, the screen is arranged like this.

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-09095de01c8446860dc9340b464cd662f812318f%2Fceiling-editor-3.png?alt=media" alt=""><figcaption></figcaption></figure>

* Floor plan: the editor screen where you can edit the ceiling surface in 2D
* 3D viewer: an area where you can view the applied result in real time in 3D
* Using the mouse wheel, you can zoom in/out and pan in both the 2D and 3D screens.
* Library panel: a library where you can apply finishes and moldings
* Area settings: the section for setting levels, materials, indirect lighting, and more.

## Drawing a Tray Ceiling

#### Step 1. Draw a guide line (Shortcut: T)

You can easily draw a tray ceiling area using guide lines.

* Click near the wall, then move the mouse to the desired position.
* After entering a number and pressing Enter, you can draw the guide line accurately.

  * You can also copy or delete a guide line by clicking it. Press Esc to exit guide line drawing mode.

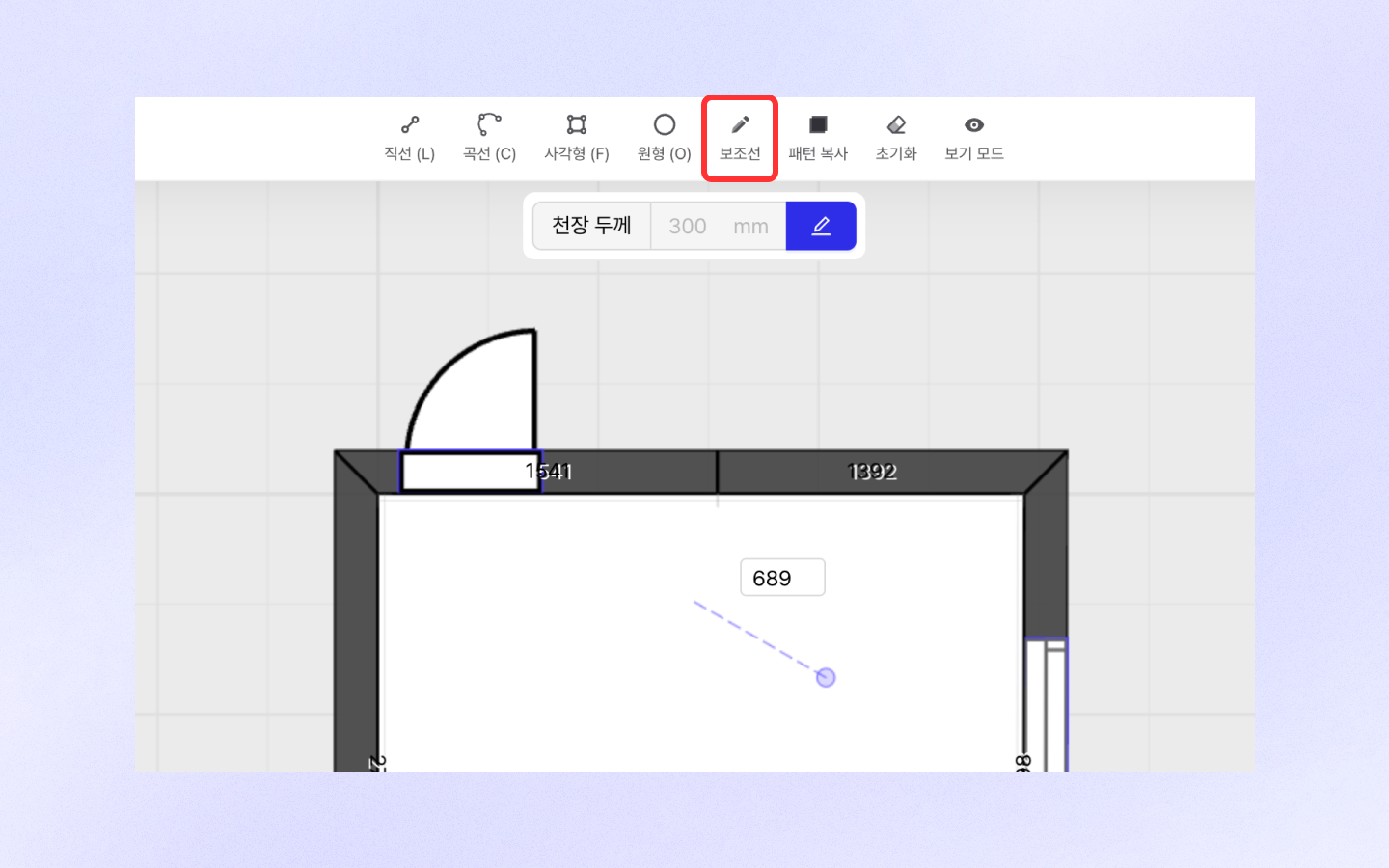

  <figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-987dfa534e100159e5f8721e0e333083c62f6b6a%2Fceiling-editor-4.png?alt=media" alt=""><figcaption></figcaption></figure>

#### Step 2. Set the area

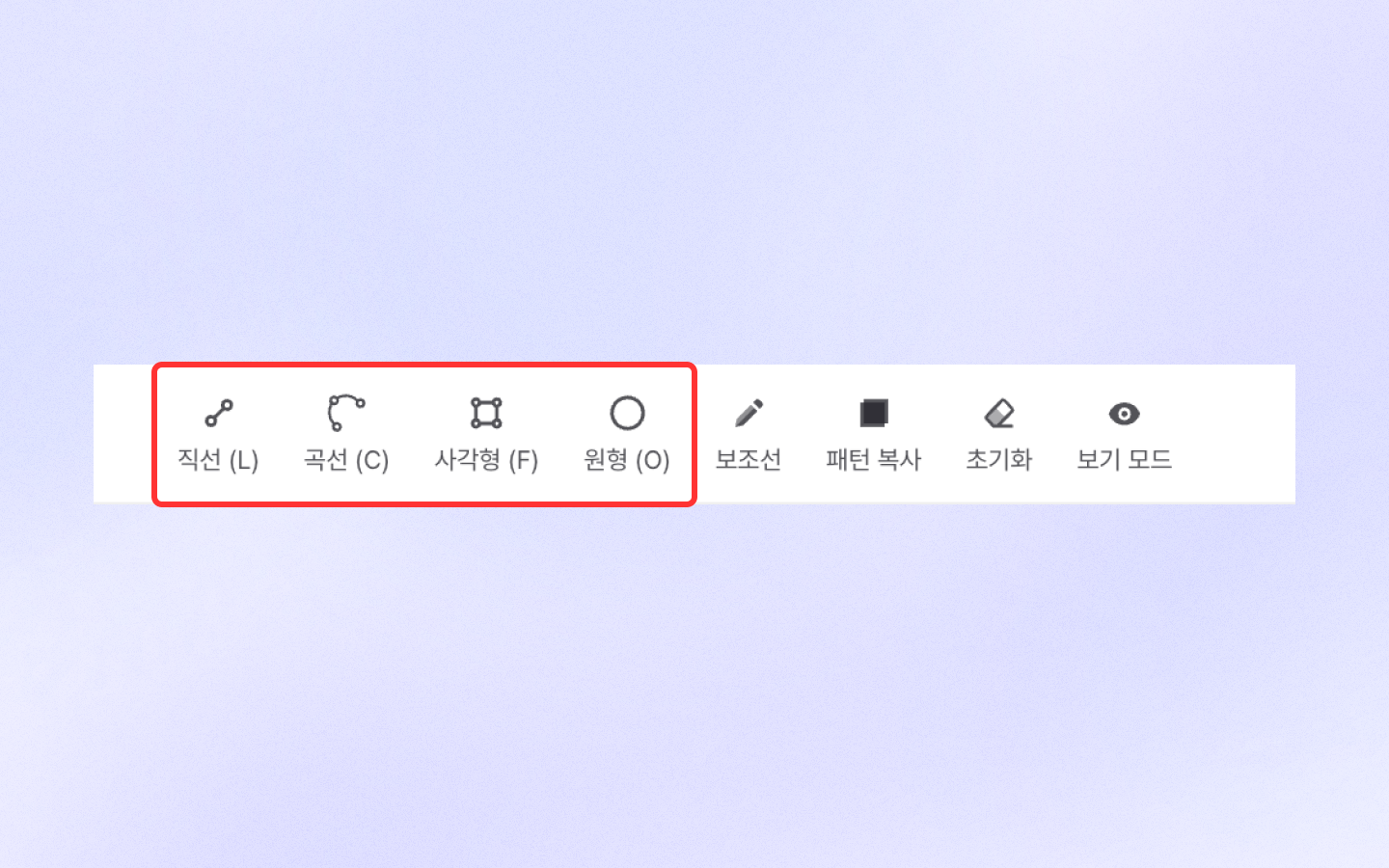

You can set the area using the straight line, curve, rectangle, and circle tools.

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-17f26c707b7b815a7636e9fb4291dd83e902c9cc%2Fceiling-editor-5.png?alt=media" alt=""><figcaption></figcaption></figure>

* Straight line: a closed area is created when lines meet.
* Curve: specify the first and second points, then set the radius length to draw a curve.
* Rectangle: click the first and second points to adjust the size. You can also press the Tab key to enter the width/height numerically.
* Circle: click the center point and set the radius length to draw a perfect circle.

**Drawing Tool Shortcuts**

| Function      | Shortcut |
| ------------- | -------- |
| Straight line | L        |
| Curve         | C        |
| Rectangle     | F        |
| Circle        | O        |

#### Step 3. Apply curvature (rounding)

You can add smooth curves to corners or angled sections.

**Apply to all corners at once**

* Click the center of the area, then right-click.
* Click the Round button, then set the radius value or move the mouse to adjust the curvature.

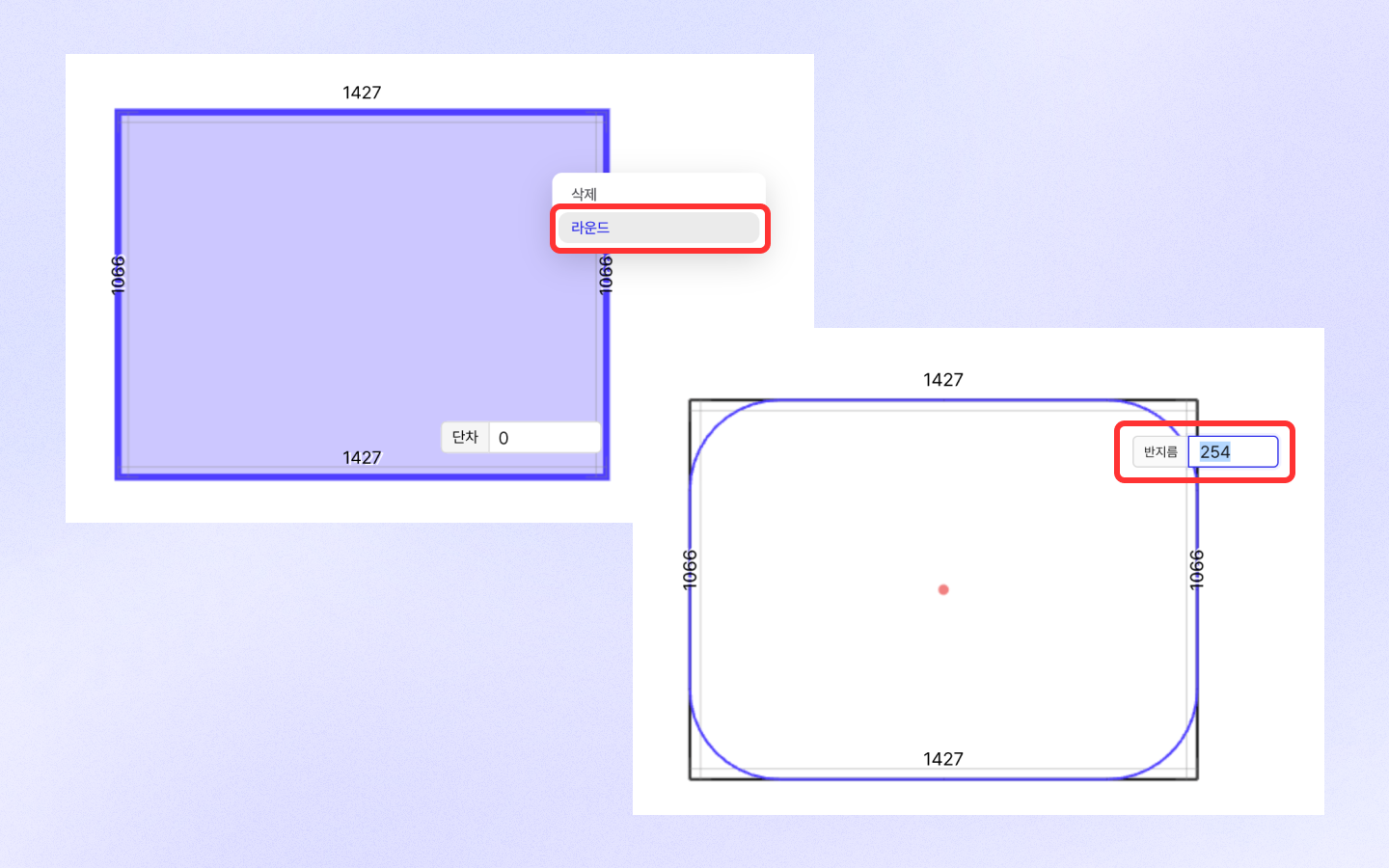

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-a5e5d783043ac5d585d21894f3d823d41df42dca%2Fceiling-editor-6.png?alt=media" alt=""><figcaption></figcaption></figure>

**Apply to a specific corner only**

* Click the corner you want to round, then right-click.
* Click the Round button, then adjust the radius.

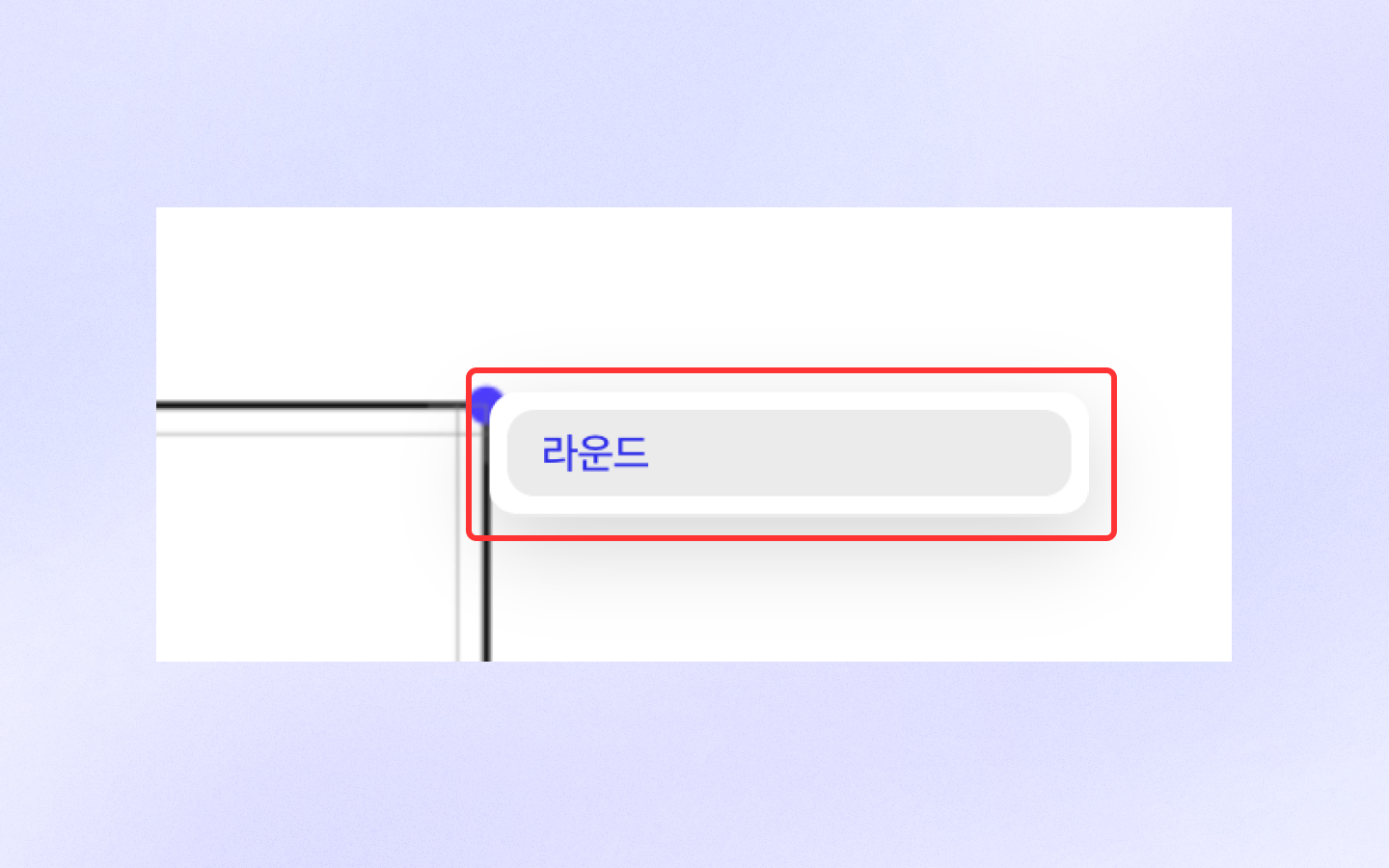

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-17c45ea67d2549699ce1beca0e5ec632f1d29b1d%2Fceiling-editor-7.png?alt=media" alt=""><figcaption></figcaption></figure>

#### Step 4. Apply a level difference

You can adjust the level difference with +/- values.

* If you want to raise the area: enter a + number
* If you want to lower the area: enter a - number
*

```
<figure><img src="../../.gitbook/assets/users/ceiling-editor/ceiling-editor-8.png" alt=""><figcaption></figcaption></figure>
```

{% hint style="info" %}
The default ceiling thickness is set to 300 mm. If you want to raise it more, just modify the ceiling thickness.
{% endhint %}

#### Step 5. Install indirect lighting

When you switch indirect lighting from \[Off → On], the settings below will be activated.

* **Indirect light box size**
  * You can set the light box size. Enter the desired number in the W/H fields.
* **Indirect light box shape**
  * Indirect lighting can be installed in two shapes:
    * L-shape: a form that wraps the indirect light once more, providing softer and more subtle lighting.
    * Flat shape: a form where the indirect light is installed and the wing wall is extended slightly more, allowing the space to look cleaner.
* **Indirect lighting brightness**
  * You can adjust the brightness of the indirect lighting shown in the rendering.\
    Use it appropriately according to the amount of ambient light or light coming in from outside.
* **Indirect lighting color**

  * You can change the color of the indirect lighting to the color you want.

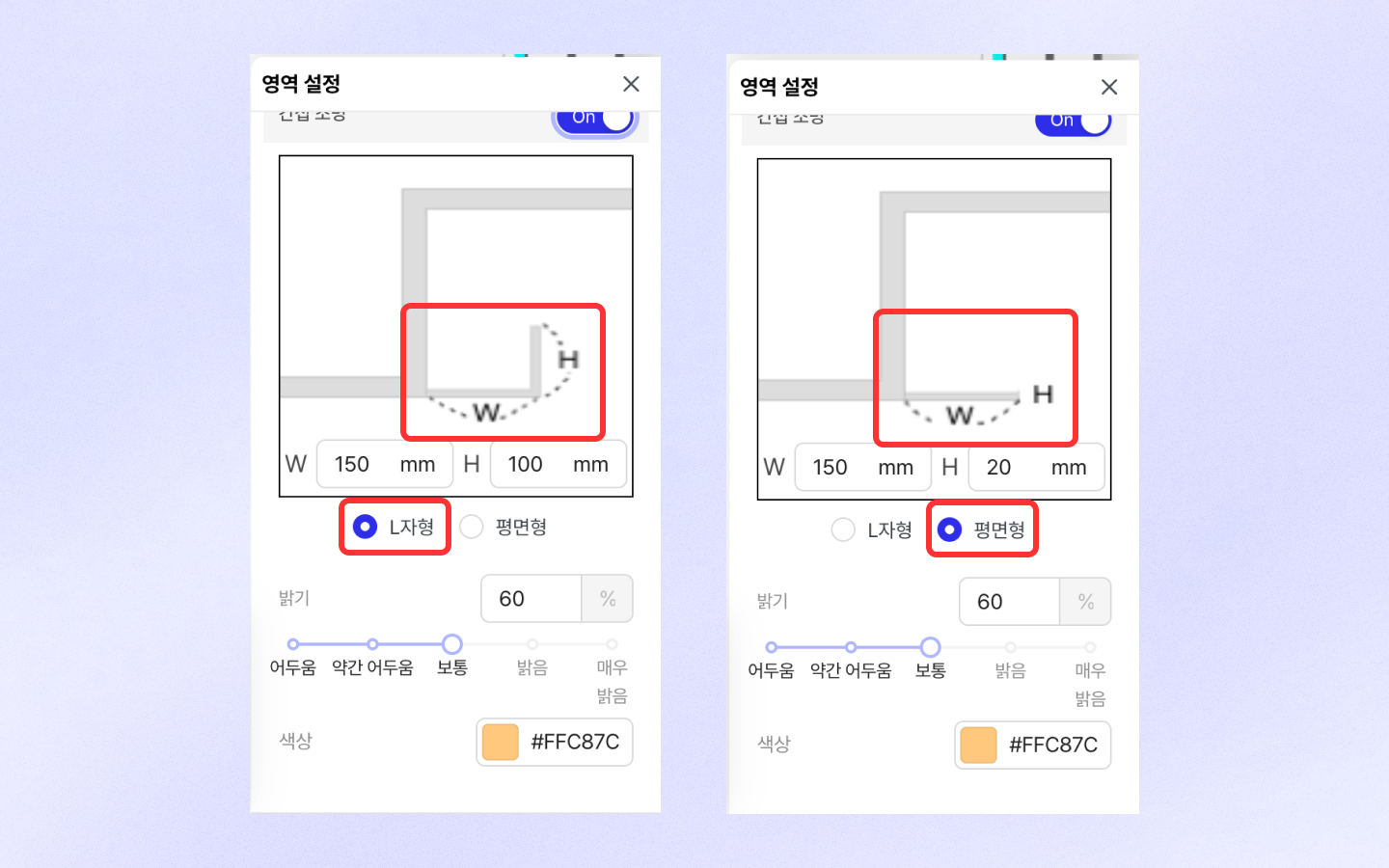

  <figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-081c57b45af2d6337e9fd8eff409e234c8cb0be7%2Fceiling-editor-9.png?alt=media" alt=""><figcaption></figcaption></figure>

{% hint style="warning" %}
When indirect lighting is installed, the previously set area expands by the W size.\
So before installing it, please set the area while considering the width in advance.
{% endhint %}

**Individual indirect lighting settings**

Indirect lighting can be set individually by clicking each line separately.

* If you click inside the area, all lines included in that area will be selected.
* If you click an individual line, only the selected line will be activated.

By selecting lines individually like this, you can also change colors or make individual settings.

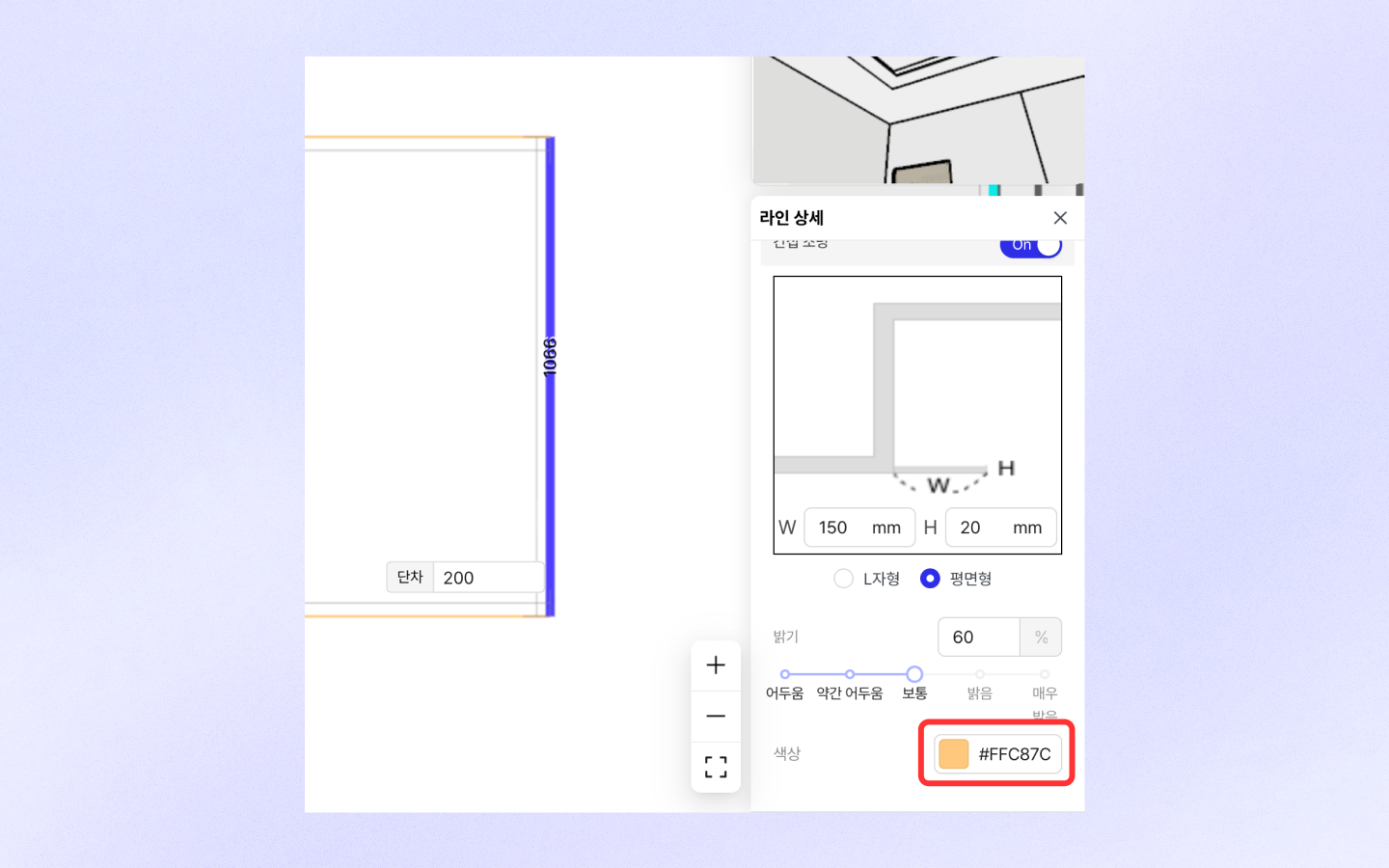

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-c2135ff4b4dc5c937b21f62548365e5f8de1a0be%2Fceiling-editor-10.png?alt=media" alt=""><figcaption></figcaption></figure>

## Creating a Curtain Box

* Specify the curtain box area.
* Enter the desired value to give the area a level difference.

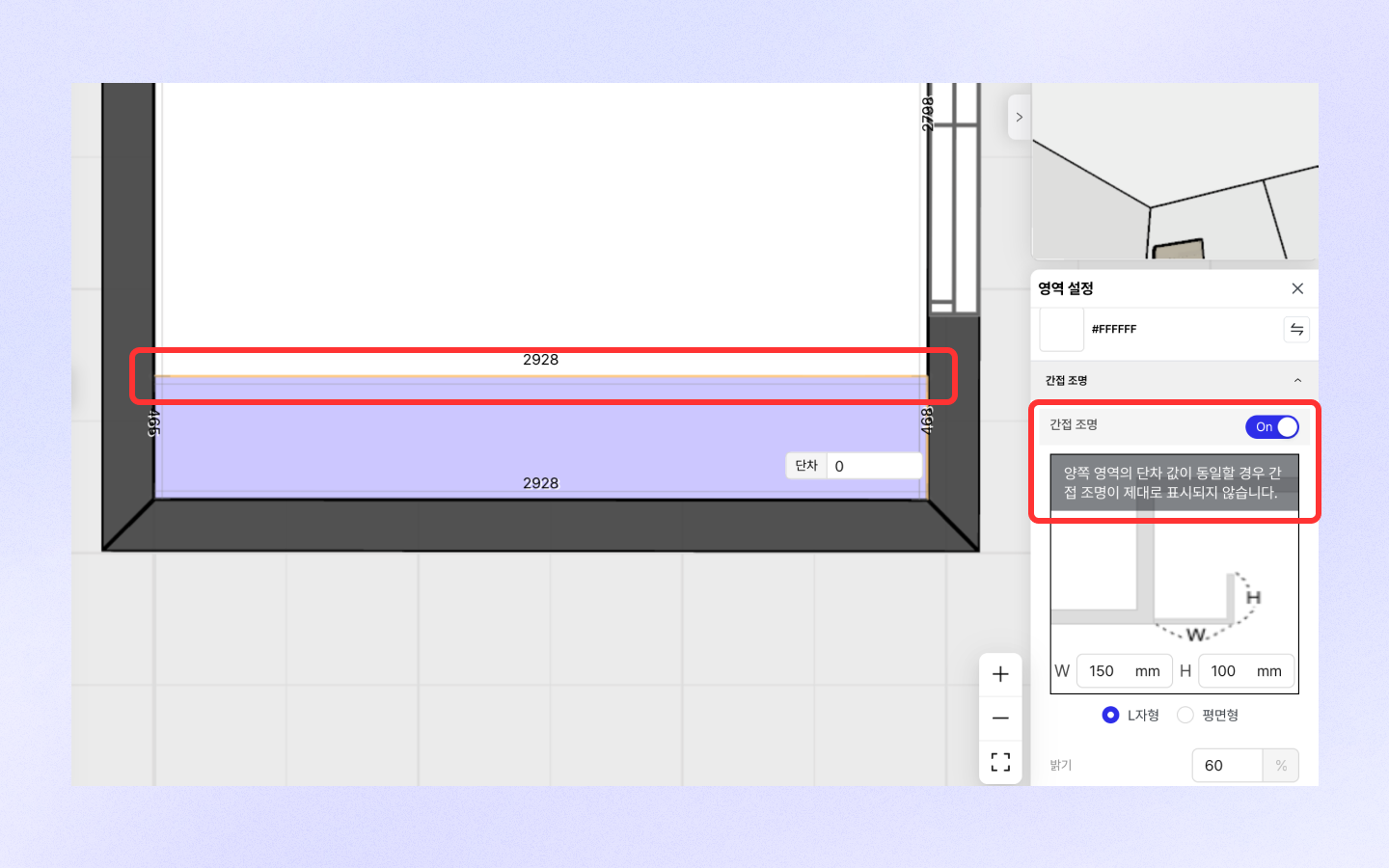

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-351833c96acf18a80734cc6f4f4d3d1dc407428b%2Fceiling-editor-11.png?alt=media" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
**Want to add indirect lighting to a curtain box?**

Just like with a tray ceiling, set the \[Area Settings → Level Difference] and then turn on the indirect lighting.\
However, please note that lighting will not be installed in areas that touch the wall.
{% endhint %}

## Applying Finishes

You can separate the ceiling surface and apply different finishes to each section.

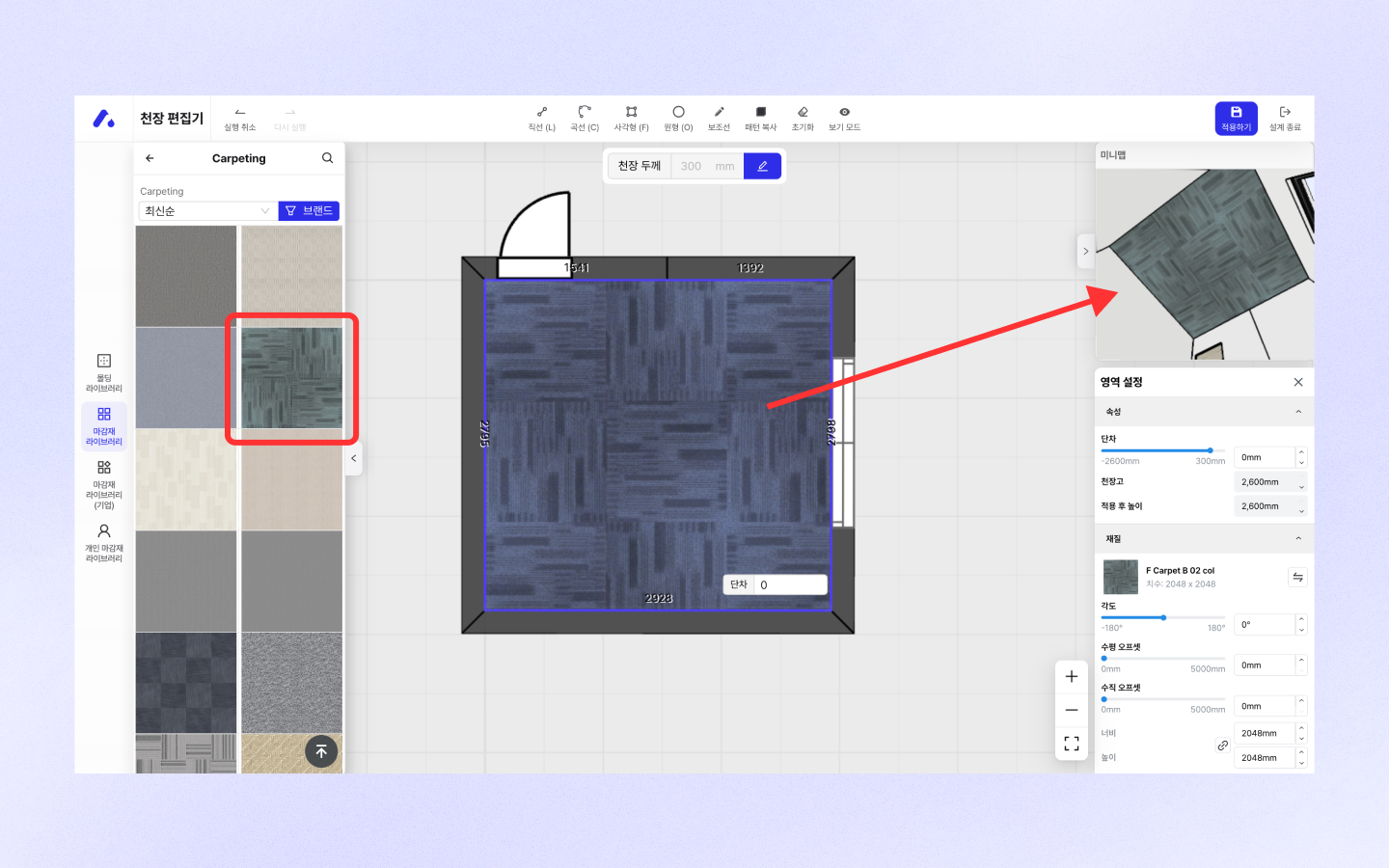

* Use the area drawing tool to divide the sections you want to apply.
* Select the desired material from the finish library in the left panel and apply it.

Create a more unique space with a variety of finishes!

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-b073d9d98a9c746e2aab31907ae6d84fd6e22fa7%2Fceiling-editor-12.png?alt=media" alt=""><figcaption></figcaption></figure>

## Molding Library

You can add a stylish accent to the ceiling using the molding library.

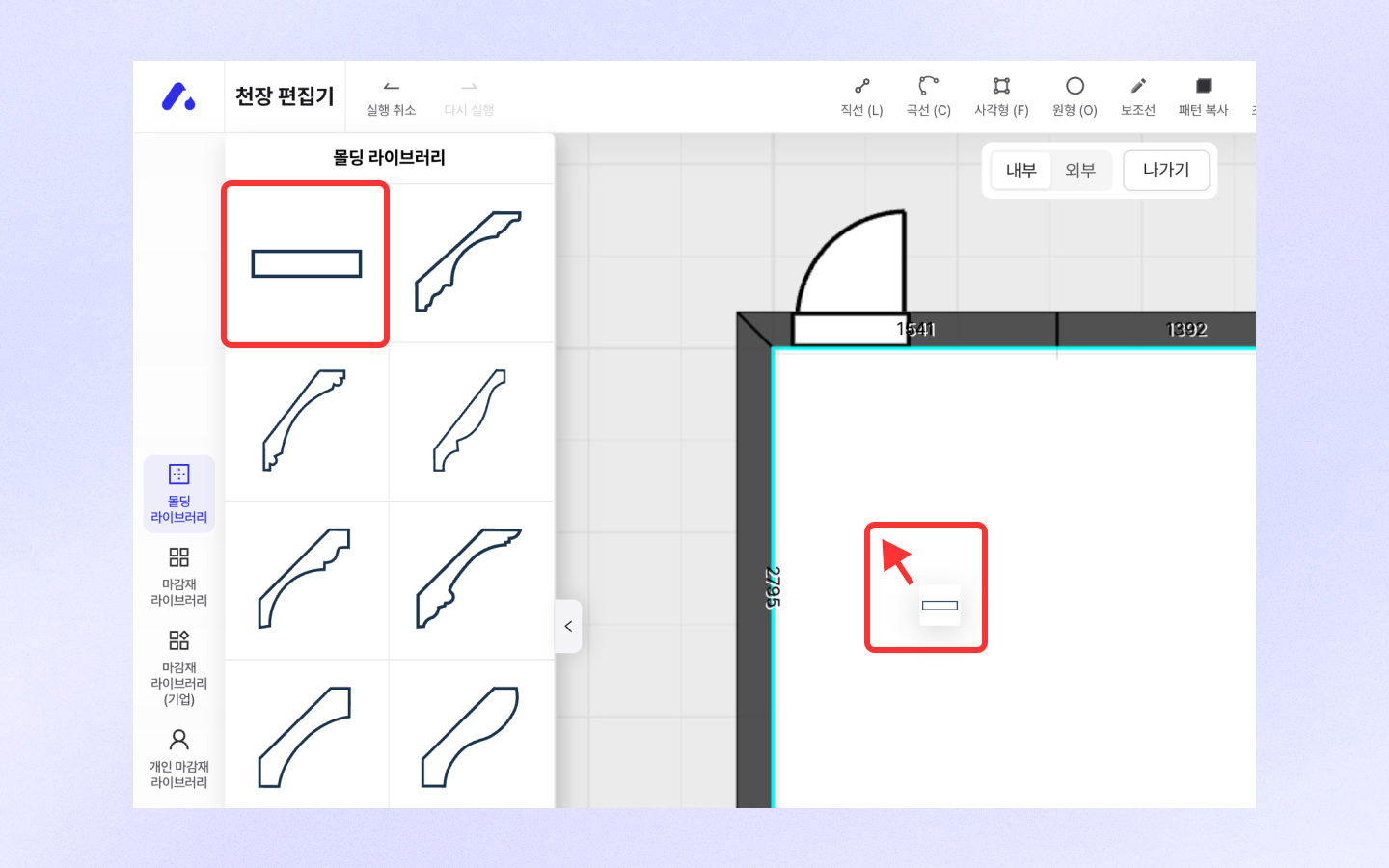

* Click the molding shape you want in the molding library.
* If you click the wall where you want to apply molding in the floor plan, the molding will be applied all at once along the selected wall.

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-a0d4fa750ac23d71b71ed3953ee70e7c1d109961%2Fceiling-editor-13.png?alt=media" alt=""><figcaption></figcaption></figure>

**Changing Molding Materials**

By default, the molding finish is set to a wood material.

* Click the material change icon.
* You can change it by selecting the desired material from the left library.

Combine molding shapes and materials in different ways to change the mood of the space!

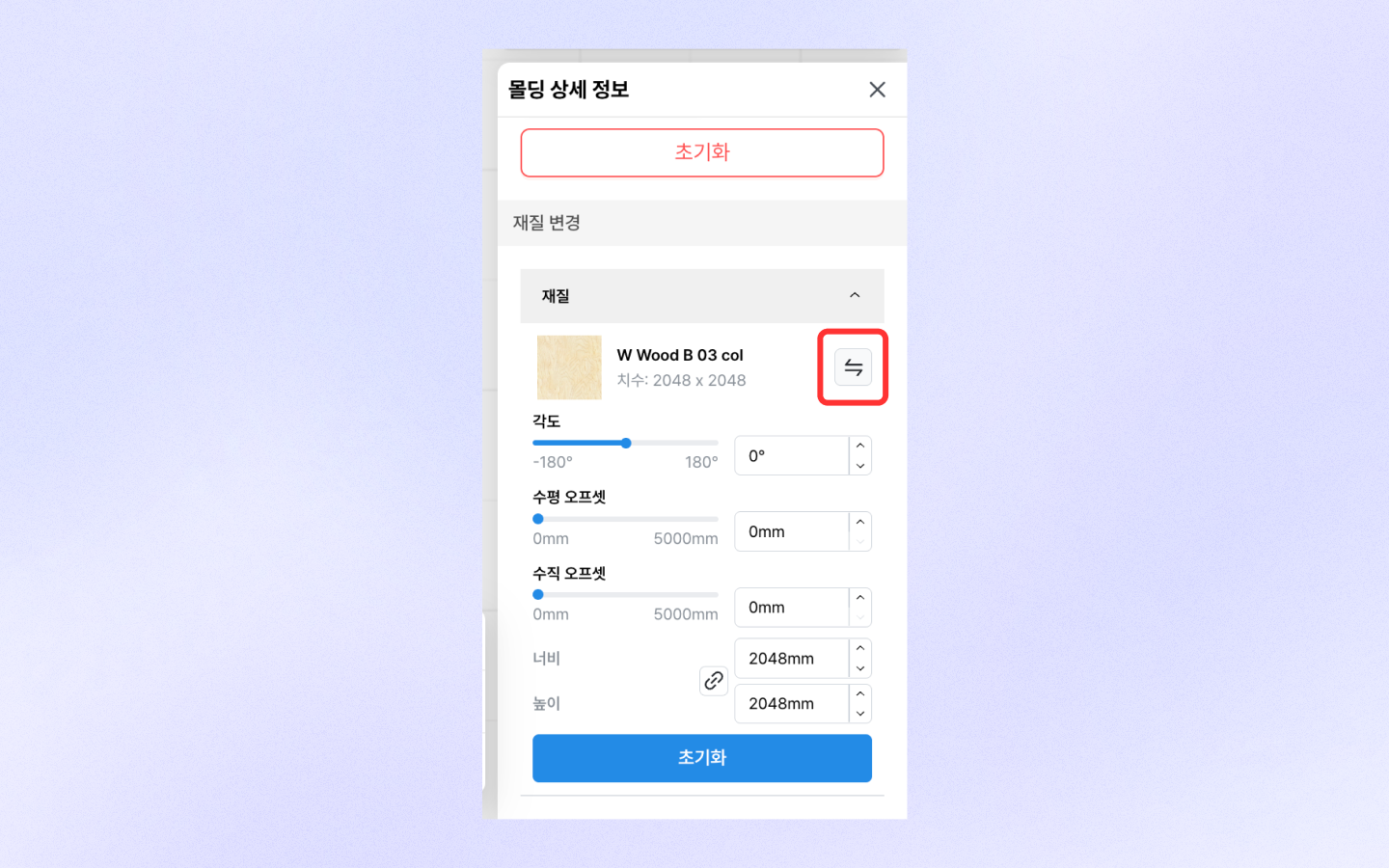

<figure><img src="https://1040484064-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs45pRyTQeyYi0T0toKii%2Fuploads%2Fgit-blob-5f9049ac90289f8163e5b7515af25a4212c41b9c%2Fceiling-editor-14.png?alt=media" alt=""><figcaption></figcaption></figure>

## Frequently Asked Questions

#### Can’t I move the location of the area I drew on the ceiling?

At the moment, changing the position is difficult. Please set the area accurately when drawing it the first time!

#### Is there no baseboard feature for the floor?

It’s still in preparation.\
We’re working hard so that floor level differences and baseboards can also be applied to the floor, just like in the Ceiling Editor.\
Please look forward to Akischetch’s continued improvements!


---
