The parameter library is a library that manages global enterprise parameters used throughout the design furniture library.
Enterprise parameters refer to parameters used globally within the enterprise domain.
Materials, sizes, option names It is suitable for managing variables commonly used across various products, etc.
Enterprise parameters can be viewed and edited in the parameter library, but cannot be edited in the component editor.
A parameter type that stores numeric values
A parameter type that stores text values
A parameter type that stores [text + image] pairs
A parameter type that stores material images
A parameter type that stores components

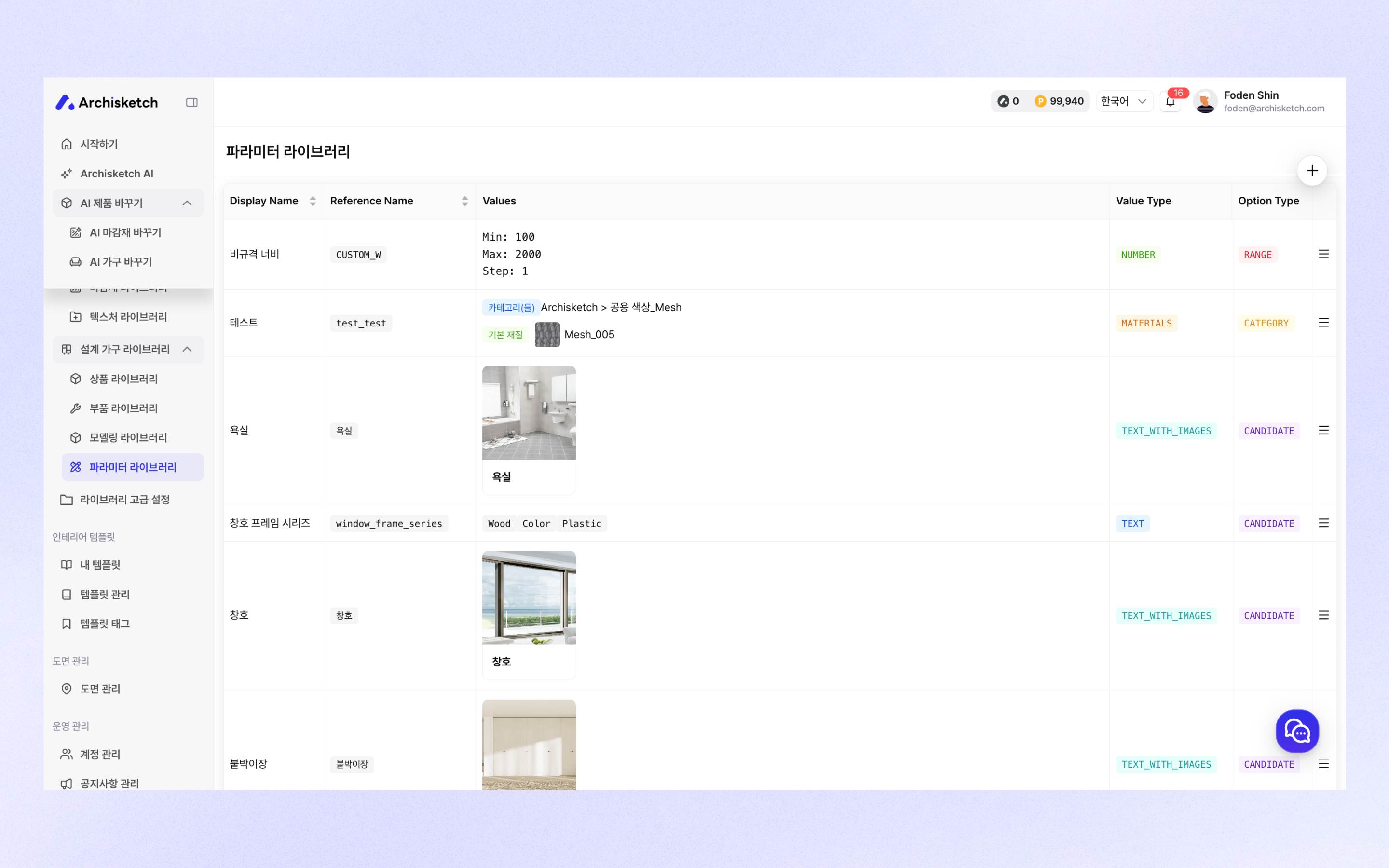

You can check the parameter list in Design Furniture Library > Parameter Library.

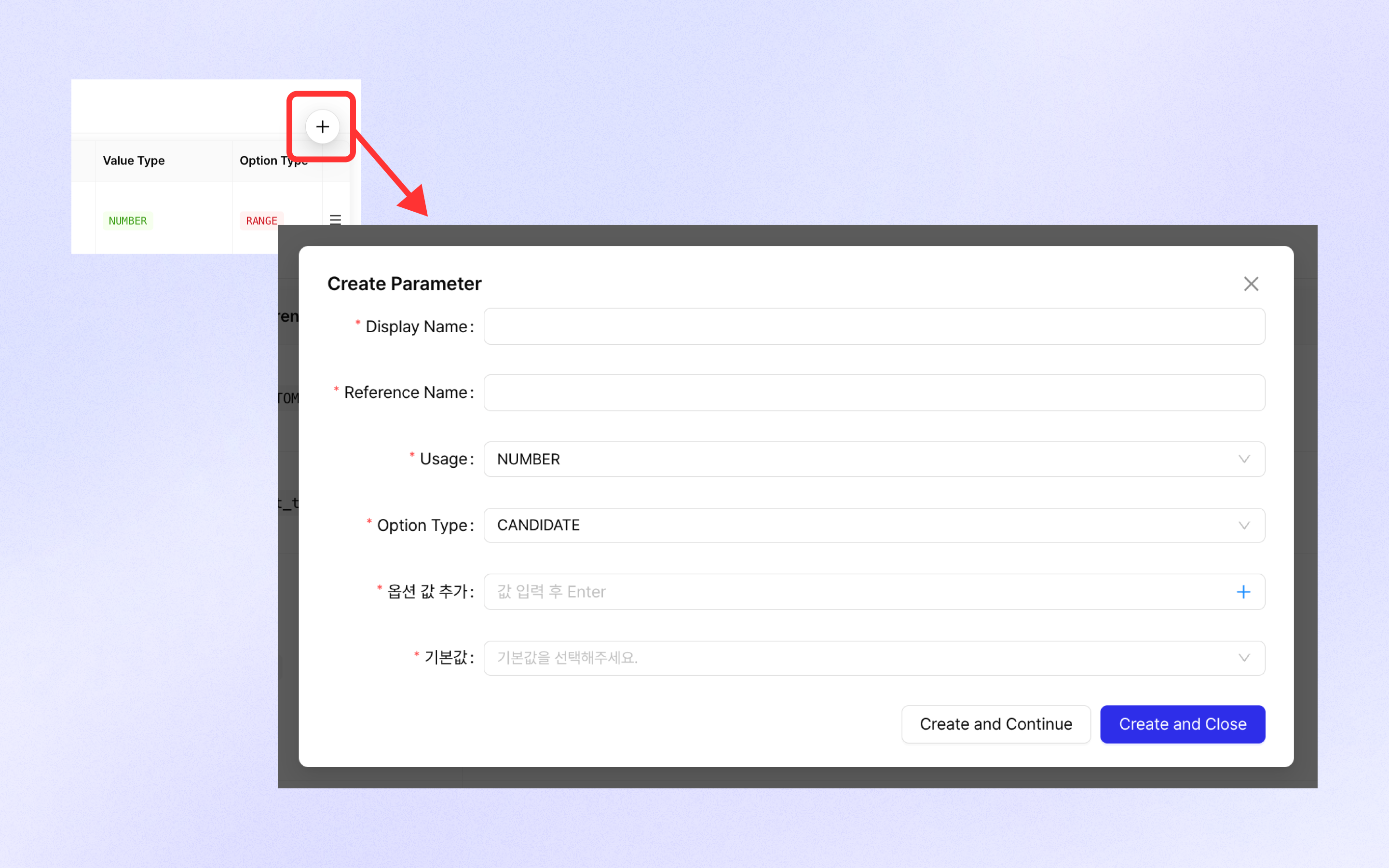

You can create a parameter by clicking the [+] button in the upper right and entering the parameter information.
Display Name means the name shown in the editor. (duplicates allowed)
Reference Name means the name used when using the parameter in the component editor, etc. (duplicates not allowed)
You can check the More menu by clicking the menu button to the right of each parameter.

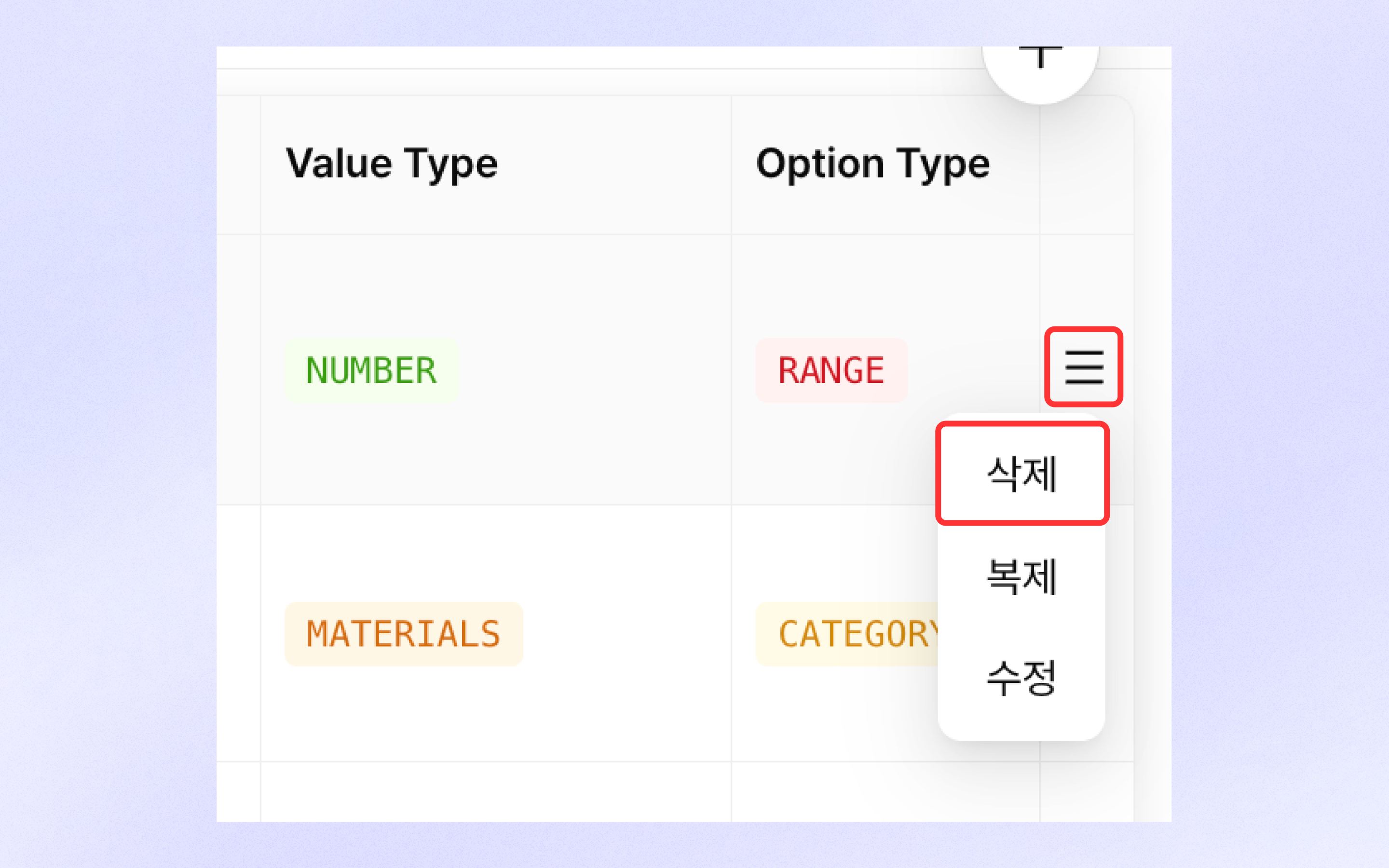

You can delete a parameter by clicking the [Delete] button in the More menu.

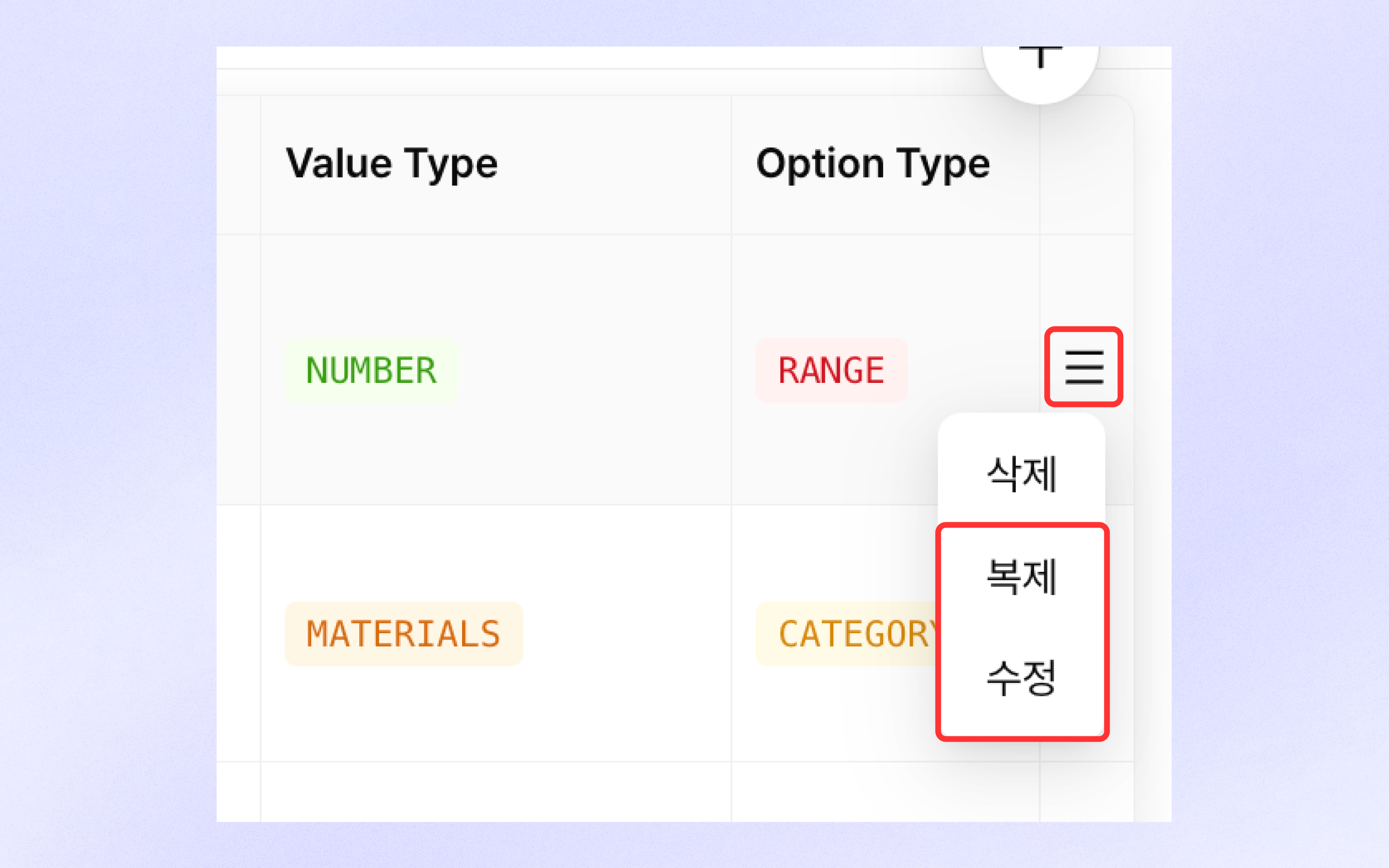

You can duplicate a parameter by clicking the [Duplicate] button, and edit the parameter information by clicking the [Edit] button.
